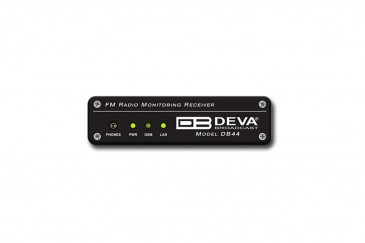

Compact FM Radio Monitoring Receiver

Lebih Lengkap Mengenai Compact FM Radio Monitoring Receiver

Compact, Robust, Reliable and Clever - This is just a small part of all the advantages of our DB44 FM Radio Monitoring Receiver and Basic Modulation Analyzer. Based on the latest technology, the DB44's core is DSP based digital design for 24/7/365 operation.

After demodulating the FM signal, the MPX signal is digitalized and all signal processing is then made through calculations. The signal being digitalized, at the input the equipment acquires measurement reproducibility over time. The digital filters’ accuracy, put into use in this equipment, enables the FM multiplex signal’s components to be accurately and repeatedly reproduced from one device to another, i.e. the same signal applied to two devices would give the same result. The processing power of this equipment enables all measurements to be refreshed simultaneously and synchronously, thereby allowing for detailed readings of all the Multiplex FM signal components.

Features:

-Built-in Stereo Decoder; Stereo Presence Detection
-Date & Time Settings with various formats
-LAN port for full TCP/IP remote control and monitoring
-Up to 90dBµV direct RF Antenna Input
-Adjustable alarms for RF, Deviation, Pilot and RDS signal
-Firmware update for future-proof operation
-Parameters Factory Restore Option
-FM Band 87 - 108 MHz Basic Spectrum Analyzer
-MPX, PILOT & RDS deviation meters
-LEFT and RIGHT demodulated audio level meters
-Headphones audio output
-RDS and RBDS decoder with BER meter
-Intuitive Application Interface
-Alarm dispatch via E-mail, SMS, SNMP
-Channel status reporting via SMS
-RF and RDS Measurements
-Remote Listening via optional GSM modem
-Real Time Audio Program Streaming
-Attractive price and very good price-performance ratio
-Very Intuitive Embedded WEB server for interactive supervision
-Proved and reliable hardware for 24/7/365 operating
-Easy Installation and Setup
-SNTP for automatic synchronization of the built-in clock
-Compact and Robust Aluminum Case for high RF immunity
