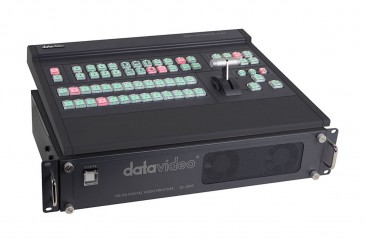

HD/SD 12-Channel Digital Video Switcher

HD/SD 12-Channel Digital Video Switcher
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai HD/SD 12-Channel Digital Video Switcher

The Datavideo SE-2800 is a cost-effective,broadcast-quality switcher. Featuring 12 digital and analogue inputs, it is designed for live events and TV programmes that need to blend a variety of video and audio sources. Thanks to its small form factor, the SE-2800 is ideal for use in a portable rack unit or in outside broadcast vehicles.

Producing superb 4:2:2 10 bit broadcast quality pictures with versatile input/output configurations, the SE-2800 also has powerful, easy to use effects, such as dual picture in picture (PIP), downstream keyer (DSK) and logo insertion.

Multiscreen monitoring is available on two HDMI monitors (not supplied). They can be used to monitor video and audio in a number of different configurations. For each set up, embedded audio level indication is available on all inputs and the Program window.

Features:

-Video Outputs:
2x HDMI (Multi-Preview)
3x SD/HD-SDI
-Audio Inputs :
4x Analog Balanced XLR
-Audio Outputs :
2x Analog Balanced XLR
-Resolutions Accepted Resolutions:
1080i 50/60
576i 50
480i 59.94/60
-Control 1x RS-422
-Tally 15-pin D-Sub
