KIT Handheld Wireless System (Band H50)

KIT Handheld Wireless System (Band H50)
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai KIT Handheld Wireless System (Band H50)

The Shure ULXD24/SM58 Handheld Wireless System features 24-bit audio clarity, efficient RF performance, and AES-256 encryption, ULX-D Digital Wireless Systems set a new standard for professional sound reinforcement. Optional rechargeable accessories are available.

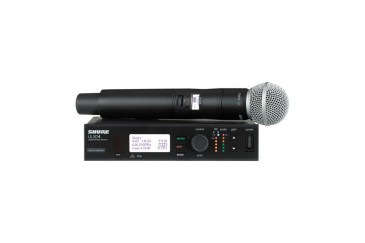

The set includes the ULXD2 handheld transmitter with a cardioid SM58 capsule, ULXD4 single-channel receiver, microphone clip, zipper bag, two AA batteries, power supply, two 1/2 wave antennas, two 2' BNC cables, 2 BNC bulkhead adapters, rackmount kit, and a 5' ethernet cable.
Shure ULXD4 Digital Wireless Receiver (H50: 534-598 MHz)
The ULXD4 Digital Wireless Receiver from Shure is designed for compatibility with Shure's ULX-D wireless systems. It is tuned to Shure's H50 frequency band that operates between 534 to 598 MHz. It features 256-bit AES encryption that allows for reception of secure signals. The unit's digital predictive switching diversity is designed to assure you have consistent reception.

Features:

RF Input Specs
Spurious Rejection >80 dB, typical
Connector BNC
Impedance 50 Ohms
Bias Voltage(s) 12 to 13 VDC, 170 mA maximum, per antenna

Audio Output
Gain Adjustment Range -18 to 42 dB in 1 dB steps (plus Mute setting)
Configuration 1/4" (6.3 mm): Impedance balanced (Tip= audio, Ring= no audio, Sleeve= ground)
XLR: balanced (1= ground, 2= audio +, 3= audio −)
Impedance 1/4" (6.3 mm): 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms
Full Scale Output 1/4" (6.3 mm): 12 dBV
XLR: LINE setting= 18 dBV, MIC setting= -12 dBV
Mic/Line Switch 30 dB pad
Phantom Power Protection 1/4" (6.3 mm): Yes
XLR: Yes

Networking
PoE No, protected
Network Interface Single-port Ethernet 10/100 Mbps
Network Addressing Capability DHCP or Manual IP address
Maximum Cable Length 328' (100 m)

General
Housing Steel
Power Requirements 15 VDC @ 0.6 A, supplied by external power supply (tip positive)
Dimensions (HxWxD) 7.75 x 6.75 x 1.65" (197.00 x 171.00 x 42.00 mm)
Weight 2 lb (913 g) without antennas
Packaging Info
Box Dimensions (LxWxH) 18.346 x 14.882 x 3.622"

Shure ULXD2 Handheld Transmitter with SM58 Microphone Capsule (H50)
Transmitter
Mic Offset Range 0 to 21 dB (in 3 dB Steps)
Frequency Band H50: 534 to 598 MHz
Audio Input Configuration: Unbalanced
Maximum Input Level 145 dB SPL (1 kHz @ 1% THD)
RF Output Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW, 10 mW, 20 mW (Varies by Region)
Battery Type 2x LR6 AA Batteries 1.5 V
Shure SB900 Rechargeable Li-Ion
Battery Life Shure SB900: > 11 Hours @ 10 mW
Alkaline Batteries: 11 Hours @ 10 mW
Housing Machined Aluminum
Dimensions (Ø x L) 2 x 10.1" (51 x 256 mm)
Weight 12 oz (340 g)

Microphone
Type Dynamic
Frequency Response 50 Hz to 15 kHz
Polar Pattern Cardioid
Sensitivity -54.5 dBV/Pa (1.85 mV) 1 Pa = 94 dB SPL; @ 1 kHz open circuit voltage
Self Noise 23.5 dB (typical, equivalent SPL; A-weighted)
