XPIC ASI-IP-SDH link
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai XPIC ASI-IP-SDH link

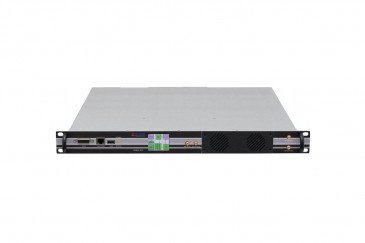

The REBLE610 features an accurate hardware design, absence of internal cabling and full modularity. The unit is composed by a basic chassis with 4 extractable boards which makes maintenance and critical operations, like frequency modification, easy and efficient. The REBLE610 contains two hot swappable power supplies (both AC and DC versions are available). The modular approach has brought to the development of the digital processing module (containing modulator, demodulator and data interface) and the RF module (containing Transmitter, Receiver and channel filters).
Features:
Half-duplex, Full-duplex or Repeater
▪ Frequency:
2 2000-2300
3 3400-4200
4 4400-5000
5 5000-5500
6L 5925-6425
6U 6425-7125
7 7125-7825
8 7825-8500
10 10000-10700
11 10700-11700
13 12700-13200
14 14000-15500
Others on request.
▪ Direct frequency conversion (Zero-IF)
▪ Excellent System Gain performances
▪ Interfaces:
Version A:
10 x DVB-ASI/BTS
1 x E1 (2.048Mbit/s)
1 x 10/100/1000BASE-T
Version B:
5 x DVB-ASI/BTS/SMPTE310
5 x E1 (2.048Mbit/s)
1 x 10/100/1000BASE-T
Version C:
2 x STM-1
2 x OC-3
4 x 10/100/1000BASE-T
2 x 1000BASE-X
1 x E1 (2.048Mbit/s)
1 x Voice Channel
▪ Bandwidth: 1.75÷56 MHz
▪ VBR up to 310 Mbps (620 Mbps with XPIC option)
