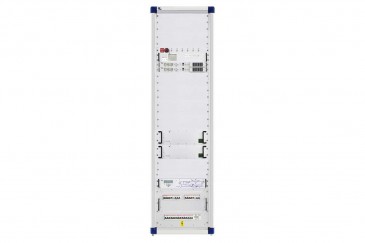

SLIM 5000 LC UHF

SLIM 5000 LC UHF
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai SLIM 5000 LC UHF

3400 Wrms COFDM, 3800 Wrms ATSC 5000 W p.s. Liquid cooled rack solution based on one driver and two amplifiers, using High efficiency PPT™ technology multimode and multistandard.

The V75_02_UHF_SD_PCM PPT (PPT=  Passive Peack Tracking – registered proprietary mark, patent pending), is the liquid power transmitter solution from Supreme line. 44 rack module-19”std is capable on an overall efficiency of a single final stage around 42% and the efficiency of the whole transmitter is about 38%.

The V75 Amplifiers: high power, liquid cooled, compact design: up to 1,7kW rms / 2,5 kW p.s in only 3 RU working in CLASS AB, high efficiency PPT class, strong and reliable, over 5000 amplifiers delivered on the same type of design.

Two different versions are available: With single power supply and with redundant plug in power supplies
Extremely high MTBF with fault rate less than 1% /year.
Thermal design with amplitude and phase compensated board: really hot pluggable modules, no re-adjustment needed
Clever liquid cooling plant: works only if needed, coolant flow temperature compensated, maximize efficiency and reliability, minimize operating costs. Up to 20kW p.s. / 12 kW rms in one single cabinet (including the redundant liquid cooling system).





Key facts:

Multimode platform – same hardware: System driver, low power transmitter, heterodyne transposer, regenerative transmitter, translator (integrated DVB-S2 receiver), gapfiller and Single Frequency Echo Canceller
Multistandard Transmitter: All digital / All analog in the same hardware
UP to 3400Wrms / 5000Wps
Power-optimized adaptive cooling – integrated coolant circulation system
2x INPUT= SAT (S2 with CAMSlot), Ethernet, ASI= Hitless switch
Regenerative and SFN Gapfiller functionalty
Freq. agile with static or adaptive pre-correction
BUILT in GPS receiver
Easy to use: web graphic interface GUI response.
Several transmitters can be housed in one single rack , sharing redundant liquid cooling system
