Lebih Lengkap Mengenai Status/logic Input

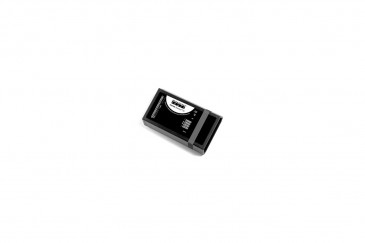

The Status Sentinel®16 is a robust,
full-featured; Ethernet based data acquisition device with sixteen
logic-level (status) inputs. All status/logic inputs are activated by a
closure to ground.
External sources can be contact closures,
open collectors or 5, 12, 15 and 24-volt logic-level sources. The Status
Sentinel®16 can be monitored over any IP network including private
networks, IP-based industrial control network and the Internet.
Users
can operate the product using a web browser or web-enabled mobile
device, while email notification may be configured to alert up to EIGHT
recipients when alarms are detected.
The user may also enable a
sound effect to play on the monitoring PC when an alarm is generated.
Logging of all user selected input
status with site ID information which may be emailed from once an hour to once a day, along with hourly snap-shot functionality.
We
have also provided SNMP capabilities to allow multiple units to be
monitored with any SMNP manager software package. SMTP username and
passwords are also supported. The Status Sentinel®16 may be paired with
the Relay Sentinel®16 to form a “16 channel Relay Extension Cord”.
Features:
- Plug-in euro-block screw terminals for all status / logic inputs. Mating plug supplied.
- Protocols: TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP.
- Front panel RJ-45, 10/100base-T LAN/Ethernet interface.
- Fully RFI proofed.
- Surge protected power supply. Domestic 7.5 VDC, 1 amp supply provided.
- Four units may be mounted on one RA-1 1-RU shelf.
