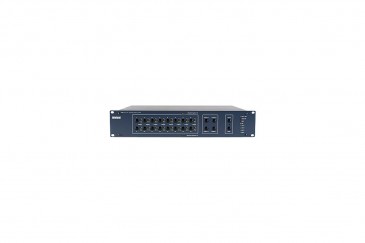

16x4 Stereo matrix audio switcher

16x4 Stereo matrix audio switcher
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 16x4 Stereo matrix audio switcher

The Broadcast Tools® SS 16.4 provides matrix audio switching of 16 stereo inputs to 4 stereo plus 4 monaural outputs. Matrix switching allows any/or all inputs to be assigned to any/or all outputs. The SS 16.4 may be controlled via front panel switches, contact closures, 5-volt TTL/CMOS logic and/or the multi-drop RS-232 or RS-485 serial port. Installation is simplified with removable screw terminals (Euro).

Features:

– Internal audio activity/silence sensors monitor all four-output channels. Each is equipped with front panel “ACT” LED indicators; adjustable alarm delay and restore duration. Sensitivity is factory set at -34db.
- Front panel input selection switches are provided for each input channel with separate output indicator LED’s
- Power-up selection of inputs to outputs, mute or last source selected.
- Sixteen user configured macros
- Most configuration options via rear panel dipswitches.
- 24 input GPI port (Remote Control or PIP) with LED indicator.
- 16 open collector channel status outputs or programmable via burst commands.
- 8 spst relay outputs. Programmable via burst commands.
- Multi-turn input level controls.
- Single turn output level controls
- Electronically balanced stereo inputs.
- Electronically balanced stereo and monaural outputs.
- Remote control of front panel functions and status.
- Multidrop RS-232 or RS-485 serial port with data activity LED.
- Multiple units may be cascaded to expand inputs.
- Depluggable screw (EURO) terminals for ALL connections.
- 2-RU chassis
