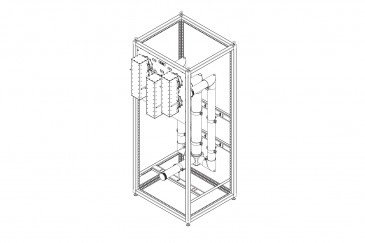

6 PORTS-3 U-LINK 1-5/8" IN/OUT 1-5/8" FLANGED

6 PORTS-3 U-LINK 1-5/8" IN/OUT 1-5/8" FLANGED
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 6 PORTS-3 U-LINK 1-5/8" IN/OUT 1-5/8" FLANGED

FREQUENCY RANGE
174 ÷ 230 MHz

IMPEDANCE
50 ohm

RETURN LOSS
≥ 32 dB

INSERTION LOSS
≤ 0.1 dB

OPERATING TEMPERATURE RANGE
-40 ÷ +70° C

MATERIALS
- Support frame
Galvanized steel
- Supporting plate
Aluminium
- External body
Polished copper, polished brass
- Inner conductor
Silver plated brass, silver plated aluminium
- Insulating material
Tefl on

EXTERNAL FINISHING
Painted Ral 9005, Surtec 650
