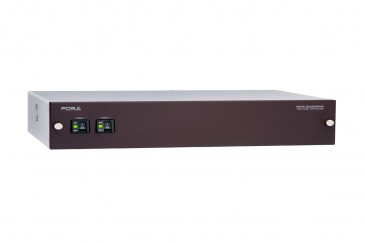

Routing Switcher, Supports 3G/HD/SD/ASI, 2RU

Features:

-Standard 3G: 1080/60p, 1080/59.94p, 1080/50p
-HD: 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/30PsF, 1080/29.97p, 1080/29.97PsF, 1080/23.98p, 1080/23.98PsF, 1080/25p, 1080/25PsF, 1080/24PsF, 1080/24p, 720/60p, 720/59.94p, 720/50p
-SD: 525/60, 625/50
-Input x Output Maximum 32 x 32 (Can be expanded in increments of 16 channels) + 4 monitoring outputs
-Interfaces LAN (TO RU): 10/100/1000Base-T, 2 ports, RJ-45 (for connecting the RU/GPI unit. Up to 32 units can be connected) (The second LAN port is used in the redundant CPU configuration)
LAN (TO PC): 10/100Base-TX, 2 ports, RJ-45 (for PC operation) (The second LAN port is used in the redundant CPU configuration)
ARCNET: 1.0Vp-p, 75Ω or loopthrough, 2 port, BNC (for video switcher HANABI series)
SERIAL: RS-232C/RS-422 (Internal switch), 1 port, 9-pin D-sub (male)
ALARM: 1 port, 9-pin D-sub (female) (Input: Reset / Output: Power, Fan Alarm)
-Temperature 32 - 104ºF (0 - 40ºC)
-Humidity 30 - 90% (no condensation)
-Power 100 - 240 VAC ±10%, 50/60 Hz IN, 2 units
