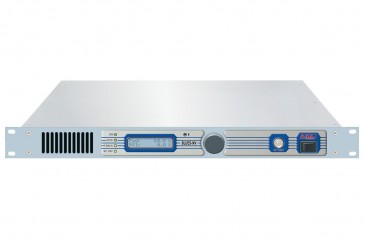

FM Transmitter
Harga | Rp 1,00 |
Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai FM Transmitter
PRIMARY APPLICATION: high-quality
transmission at a very attractive price, ideal for repeater stations or
like exciter of ultracompact systems. Adjustable power output from 10 to
100 %.
HARDWARE FEATURES: ultra-compact and ultra-light (only 6Kg.), stainless steel chassis, in 1 rack unit only.
USER-FRIENDLY
FEATURES: universal 80-260 V multi-voltage power supply enables
operation without preselect voltage. Pressure encoder provides great
accessibility for user/device interaction, resulting in extreme of use.
Configuration software offers an simple, intuitive interface.
RELIABILITY/CONTINUITY:
the APC (Automatic Power Control) and Foldback protection ensures
enhanced business continuity under any operating conditions.
AUDIO
PERFORMANCE: low distortion and intermodulation values and a high
noise/signal ratio with an AES/EBU input (optional) automatically
managed in exchange.
EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.
INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
INPUT/OUTPUT
INTERFACE: built-in high-performance stereo coder, L&R, Mono, MPX
and auxiliary inputs for SCA / RDS signals and AES/EBU digital.
REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
Features:
- Output power: Adjustable from 0 to 50 W
- RF output: 50 Ohm (type N)
- Frequency Range: FCC-CCIR-OIRT-JPN-CHN
- Modulation type: Direct carrier frequency
- Consumption: 120 W
- Cooling system: Forced with internal fan
- Frequency Programming: From software
