Multi-processor video encoding

Lebih Lengkap Mengenai Multi-processor video encoding

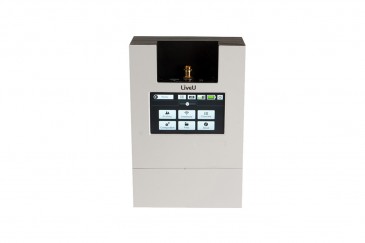

The LU500 combines high performance and portability with an end-to-end boot-up time of less than one minute. The unit supports Anton Bauer, V-Lock, PAG, and LiveU’s internal swappable
batteries and offers advanced remote control functions via the LiveU Central management platform. LU500, with the new multi-media processors, offers up to ten bonded connections plus WiFi
and two LAN connections. The unit can be connected to the LiveU Xtender external antenna for extra-resiliency in challenging conditions, and connected to satellite equipment to create a hybrid cellular/satellite solution for guaranteed bandwidth in remote areas. The LU500 can also support additional optional modems via external USB ports. The LU500 can be controlled by a single operator in the field using an intuitive touch-screen interface or controlled remotely from any computer using the LiveU Central management platform.

Features:

VIDEO
RESOLUTIONS : 1080p50/60/25/30/24, 1080i50/60, 720p50/60/25/30, PAL, NTSC

VIDEO INPUTS: SDI, HDMI

VIDEO FORMATS: 3G/HD/SD-SDI, HDMI 1.4, full A/V auto detection

VIDEO ENCODER: H.264 AVC high profile

INTEGRATED BONDED INTERFACES

SIMULTANEOUS BONDING: Up to 13 network links; inc. 8 x integrated 4G LTE / 3G cellular or WiMAX modems + internal Wi-Fi, 1 standard USB ports, one mini USB port and 2 Ethernet ports

SUPPORTED TECHNOLOGIES: 4G LTE, HSPA+, HSUPA, HSDPA, UMTS, CDMA EVDO Rev 0/A/B, Wi-Fi 802.11 a,b,g & n

USER INTERFACE
CONTROL: Full monitoring and control using touch-screen UI, with full web-based remote control
PREVIEW: Video preview; per-network cellular connectivity status including throughput, network delay etc.

PHYSICAL DIMENSIONS
With 3hr battery: 150mm x 225mm x 70mm /5.8” x 8.9” x2.7” (W x H x D)
WEIGHT: 1.08kg (2.4lb) without battery, 1.68kg (3.7lb) with 3hr battery
