H.264 Video Streaming Server / Recorder
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai H.264 Video Streaming Server / Recorder

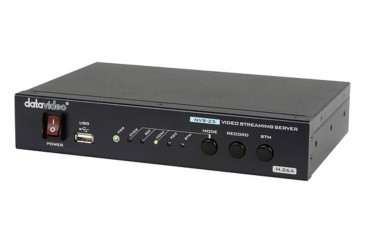

NVS-25 is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.
From any HDMI / SDI / CVBS input source such as a camera or switcher, NVS-25 generates an H.264-encoded stream compliant with RTSP / RTMP / HLS protocols.
NVS-25 can be used in recording mode to record an MP4 or .TS file to a USB storage device, and it can be used in encoding mode to generate an H.264 stream.
NVS-25 is remotely controlled using Windows / Apple PC or mobile device with a web browser.
Flexible mechanism design for desktop application or 1U rack mount application.
Features:
-Video Inputs:
1 x HD/SD-SDI via BNC Connector
1 x CVBS (composite video) via BNC Connector
1 x HDMI
-Video Encoding H.264 AVC video codec, up to high-profile level 4.0, configurable bit-rate up to 6 Mbps
-Supported Video Resolutions:
1820 x 1080p 50/59.94/60 (recorded at 25/30p)
1920 x 1080i 50/59.94/60
1280 x 720p 50/59.94/60
720 x 576i 50
720 x 480i 59.94
-Audio Input:
2 x Channels SDI embedded audio
2 x Channels analog audio via 2 x XLR or 2 x RCA Connectors
2 x Channels HDMI embedded audio
-Audio Encoding AAC-LC audio codec
-Sample rate: 16-bit/48 kHz
-Bit rate: up to 384 kbps
-Output:
1 x RJ-45 (10/100M Ethernet)
1 x USB 2.0 type A for file output to USB storage
-Storage USB 2.0 mass storage
-File system: FAT32/MP4
-Network DHCP Client
-Streaming protocols: HLS/RTSP/RTMP (1 protocol at a time), supports up to 3 clients
-Control Web UI for system configuration and control
-System Monitoring LEDs for power, input status, REC status, and streaming status
-Power Input 100 to 240 VAC
-Environmental Operating temperature: 32 to 122°F / 0 to 50°C
-Storage temperature: 14 to 140°F / -10 to 60°C
