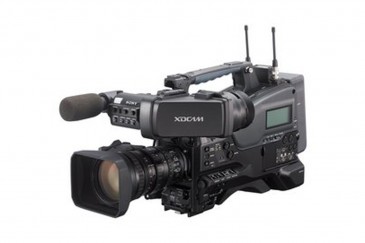

PXW-X320 with CBK-CE01 pre-installed

Lebih Lengkap Mengenai PXW-X320 with CBK-CE01 pre-installed

The PXW-X320 is a high-performance SxS memory camcorder which inherits field-proven operability from the reputable PMW-320. The PXW-X320 is a part of the XDCAM HD422 family and comes equipped with cutting-edge imaging technology – three 1/2-inch-type Full-HD Exmor CMOS sensors with an extremely high S/N ratio – and with the Flash Band Reducer feature to provide outstanding picture quality. The PXW-X320 supports XAVC offering high quality content creation in the HD domain. In addition to XAVC, MPEG HD422, MPEG HD, MPEG IMX, and DVCAM formats are also supported. Two HD/SD-SDI, HDMI, i.LINK™, and composite outputs provide a wide range of AV and IT interfaces.

The PXW-X320 also supports wireless operation using an optional adapter, the CBK-WA101. This enables easy and quick clip data transmission to broadcast stations, saving the time and transportation cost of shot clip delivery. With various functions inherited from Sony’s world-acclaimed XDCAM camcorders and yet highly cost effective with lens included, the PXW-X320 is an ideal choice for many different camera professionals, from those engaged in news gathering, when speed is the key concern, to those who produce TV programs and documentaries, when quality is crucial.

The PXW-X320 incorporates three 1/2-inch-type Full HD Exmor CMOS sensors (1920 x 1080) to achieve high resolution, high sensitivity (F11 at 59.94 Hz / F12 at 50 Hz), low noise (60 dB), and a wide dynamic range to give more freedom of expression for creative shooting.

In addition to existing noise reduction features, the PXW-X320 also includes a three-dimensional noise reducer. This not only detects vertical and horizontal direction in a frame picture but also noise components in a time axis, utilizing correlation characteristics between video frames. Using this feature, the S/N ratio is improved to 60 dB, which is the highest level of noise reduction in a 1/2-inch-type Full HD shoulder camcorder.

The PXW-X320 incorporates XAVC in the HD domain at a 100 Mbps data rate, enabling the creation of rich content with 10-bit quality. It is capable of recording XVAC Intra at 1920 x 1080 Full HD 59.94i, 50i, 29.97p, 25p and 23.98p, or 1280 x 720 HD 59.94p and 50p. The camcorder can also record Full HD video (1920 x 1080) at up to 50 Mbps using XAVC Long and MPEG HD422, as well as MPEG HD at 35 Mbps / 25 Mbps, MPEG IMX at 50 Mbps, and DVCAM at 25 Mbps in MXF file, as standard supported formats.

The PXW-X320 is designed to support wireless operation using an optional wireless adapter, the CBK-WA101, which can be attached without any additional cables. Using this adapter, you can stream out pictures for live shooting via an IP network. After shooting, you can select a recorded proxy or high resolution* file from the list and upload it to an on-premises server or to a cloud service via a mobile Wireless LAN router or 3G/4G/LTE device. The adapter also provides live monitoring and remote control of the PXW-X320 by mobile tablet or smartphone with mobile application software. * A USB connection is required.

Features:

-Built-in Optical Filters 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
-Effective Picture Elements 1920 (H) x 1080 (V)
-Gain -3, 0, 3, 6, 9, 12, 18, 24 dB
-Horizontal Resolution 1,000 TV lines or more (1920 x 1080i mode)
-Imaging Device 3-chip 1/2-type "Exmor" Full HD CMOS
-Minimum Illumination 0.04 lx (typical) (1920 x 1080/59.94i mode, F1.6, +42 dB gain, with 64-frame accumulation)
-Optical System F1.6 prism system
-S/N Ratio 60 dB (Y) (typical)
-Sensitivity (2000 lx, 89.9% reflectance) F11 (typical) (1920 x 1080/59.94i mode)
-F12 (typical) (1920 x 1080/50i mode)
-Shutter Speed (Time) 1/60 sec to 1/2,000 sec + ECS (Extended Clear Scan)
-Slow & Quick Motion Function 720p: Frame rate selectable from 1 fps to 60 fps
-1080p: Frame rate selectable from 1 fps to 30 fps
-Slow Shutter 2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation
-White Balance Preset (3200K), Memory A, Memory B/ATW
-Operating Temperature 32° F to 104° F
-Power Consumption Approx. 25W (with viewfinder, lens and microphone while recording)
-Power Requirements DC 12 V
-Audio Input XLR-type 3-pin (female) (x2), Line/Mic/Mic +48 V selectable
-Audio Output XLR-type 5-pin
-DC Input XLR-type 4-pin
-DC Output 4-pin
-Genlock Input BNC (x1)
-HDMI Output A type (x1)
-MIC XLR-type 5-pin
-Remote 8-pin
-SDI Output BNC (x2), HD-SDI/SD-SDI selectable
-Speaker Output Monaural
-Timecode Output BNC (x1)
-USB USB device B Type (x1), host A Type (x1)
-Video Output BNC (x1) HD-Y or Analog composite
-i.LINK IEEE 1394, 6-pin (x1), HDV (HDV 1080i )/DVCAM stream input/output *3 , S400
-Filter Diameter M82 mm, pitch 0.75 mm (on lens)
-Focal Length f = 5.8 mm to 93 mm (equivalent to 31.4 mm to 503 mm on 35 mm lens)
-Focus AF/MF/Full MF selectable
-800 mm to ∞ (MACRO OFF)
-50 mm to ∞ (MACRO ON, Wide)
-782 mm to ∞ (MACRO ON, Tele)
-Iris F1.9 to F16 and Close, Auto/Manual selectable
-Lens Mount Sony 1/2-inch type bayonet mount
-Zoom System 16x (optical), servo/manual (AF lens for PXW-X320)
