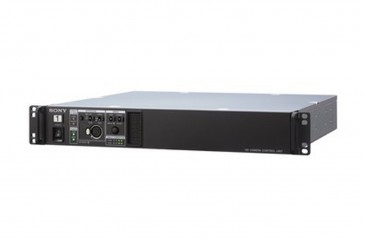

Camera Control Unit for the HSC-300RF camera

Camera Control Unit for the HSC-300RF camera
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Camera Control Unit for the HSC-300RF camera

1.5 RU-size Camera Control Unit for the HSC-300RF/100RF camera. A standardized 19-inch rack system can be built. Under multi-camera operation mode, the HSCU-300RF can connect the HSC-300RF with the MSU-1000/1500 Master Setup Unit, which enables the HSC-300RF to be used as a simple studio system or as part of a large-scale broadcasting system consisting of multiple cameras. Equipped with the industry-standard optical fiber transmission technology, the HSCU-300RF can transmit high-resolution pictures between the camera and CCU, regardless of the cable length. The HSCU-300RF features flexible interfaces of selectable inputs/outputs between HD-SDI and SD-SDI .

Sony's Compact Camera Control Unit for HSC-300RF and HSC-100RF is a compact 1.5 RU size camera control unit that creates a standardized 19" rack system that is ideal for space-limited production areas.

Features:

-Power Supply AC 100 V to 240 V, 50/60 Hz
-Operating Temperature 5 to 40°C (41 to 104°F)
-Storage Temperature -20 to +60°C (-4 to +140°F)
-Camera Fiber
-Intercom Intercom/Tally/PGM: D-Sub 25-Pin, Female
-Intercom (PROD/ENG), 4W/RTS/CC, 0 dBu
-Tally (R, G)
-PGM 2 Systems, -20/0/+4 dBu
-Remote 8-Pin Multi-connector
-Trunk Trunk/Microphone Remote/WF Remote/WF Mode: D-Sub 25-Pin, Female
-Trunk: RS-422A 1 System
-LAN RJ-45 (x1), 10BASE-T, 100BASE-TX
-AC Input AC 100 to 240 V
