Multiformat Camera System

Lebih Lengkap Mengenai Multiformat Camera System

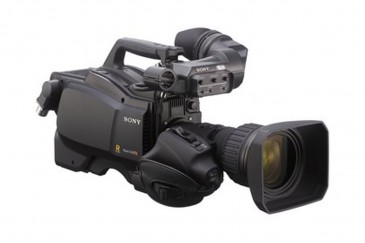

The HSC-100RF is HD studio and system camera system that is equipped with three 2/3" CCD imagers and offers 1.5G optical fiber transmission at 1080 @ 59.94i/50i and 720 @ 59.94P/50P. Utilizing the new imagers, 16-bit A/D and DSP LSI, the picture performance of the camera system has greatly been improved from previous generation cameras.

The Sony HSC-100RF Optical Fiber Broadcast Camera is an HD/SD camera with an optical fiber CCU input that supports cable runs up to 6,562 ft to an optional CCU. The camera features a 2/3" type CCD sensor offering F10 sensitivity for 1080i59.94 and F11 for 1080i50, with -60dB signal-to-noise ratio. It also records in 720p and 1080PsF and down-converts to high-quality SD. An optional HZC-PSF3 software is required for 1080/29.97PsF/25PsF. The lens mount is Sony Bayonet. Inputs/outputs include XLR audio, XLR mic, HD/SD-SDI output, VF signal, return signal, SDI prompter output/genlock input/return input, and XLR intercom. An electronic color correction filter and four ND filters are built in.

A 16-bit A/D converter processes images with very high color precision. A Digital Extender function expands an image by a factor of two in the center of the sensor's captured image without any decrease in sensitivity. Auto Lens Aberration Compensation 2 automatically reduces chromatic aberration by horizontal and vertical compensation when using lenses that support this function. Seven standard-gamma and four hyper-gamma tables are available for use in adjusting contrast. A Multi-Matrix function applies color adjustments over a user-specified color range, and Adaptive-Matrix enables color conversion even when shooting under excessively strong ambient light. Master White Gain allows step-less gain level adjustments. Two types of focus assist are available -- Viewfinder Detail adds dedicated edge signals to the viewfinder, allowing easy recognition of a focusing point, and Focus Assist Indicator displays an indicator for adjustment at the bottom or elsewhere within the viewfinder frame.

The main chassis is made of durable magnesium-alloy casting. An integrated shoulder pad is adjustable back and forth without any tools. A protrusion on the front of the carrying handle allows added stability while shooting, and a non-slip structure on the handle's lower surface provides better grasp. Assignable switches are available on the side and rear panels and assignable buttons on the handle.

Features:

-Built-in-Filters CC: Electrical
-ND 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
-Effective Pixels 1920 x 1080
-Lens Mount Sony Bayonet Mount
-Pickup Device 3-chip 2/3-inch type CCD's
-Registration N/A
-S/N Ratio -60 dB (typical)
-Shutter Speed 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (59.94i mode)
-1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (50i mode)
-Spectrum System F1.4 prism system
-Power Requirements DC 180 V, 1.0 A (max.), DC 12 V, 7 A (max.)
-Operating Temperature -4 to 113°F (-20 to 45°C)
-Storage Temperature -4 to 113°F (-20 to 45°C)
