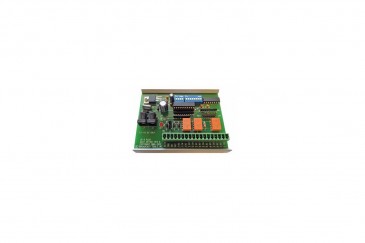

5 pole mechanical latching relay w/logic functions.

5 pole mechanical latching relay w/logic functions.
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 5 pole mechanical latching relay w/logic functions.

The LR-5 Plus is a mechanical latching relay with one set of four pole double throw contacts and one set of single pole normally open contacts. The LR-5 Plus provides two control inputs which may be configured for sustained, toggle, set-reset (flipflop), dual alternate action or falling/rising edge, along with additional Boolean logic functions.

The LR-5 Plus may be used to switch all types of audio, AES and AC/DC circuits. Additional features include; Independent user programmable logic and pulse stretching (delays) from 100 milliseconds to 12.7 seconds in 100 millisecond steps, or 10 seconds to 21 minutes and 10 seconds in 10 second steps, removable euro-block screw terminals and LED indicators to display relay ON/OFF. The LR-5 Plus assembly is housed in a plastic snap track.

Features:

- Fifteen logic functions include sustained, toggle, set-reset (flip-flop), dual alternate action or falling/rising edge, along with additional Boolean logic functions.
- The independent pulse stretcher or time delays may be configured from 100ms to 12.7 seconds in 100 millisecond steps, or 10 sec. to 21 minutes and 10 seconds in 10 second steps.
- On/Off LED indicators are provided for relay position status
- A four-position dipswitch is provided for logic function configuration and an eight-position dipswitch is provided for timing configuration.
- Dual power jacks allows for the daisy chaining of units from one wall supply as well as a DC in connection on the terminal block.
- All I/O connections via removable euro-block screw terminals.
