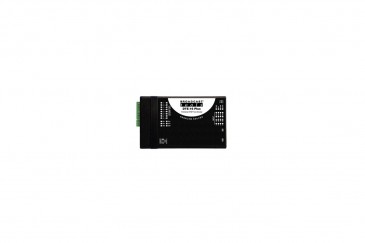

16 Channel DTMF Tone Encoder
Harga | Rp 1,00 |
Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 16 Channel DTMF Tone Encoder
The DTE-16 Plus is a feature rich DTMF
tone/sequence encoder that is user programmable to encode tone sequences
up to 15 characters in length or a single tone via any one of 16
contact closure inputs and/or commands from the USB COM port. Each input
may be programmed to generate a tone for the duration of the closure or
tone burst immediately on command.
A passive mixing network is
provided to mix both program input audio and tone encoder audio if
required. Programming is performed using a non-dedicated PC’s USB port
equipped with Windows HyperTerminal or PuTTY.
Features:
- Passive program mixer input.
- Balanced low Z output
- Front panel status LEDs for all 16 inputs, power, tone activity, program mode, and serial data activity.
- Programmed via USB connection.
-
All connections except for the USB type B connector and a coaxial DC
jack are on removable euro-block screw terminal connectors to simplify
wiring and service, mating plugs are supplied.
- Fully RFI proofed.
- Surge protected power supply. Domestic power supply provided.
-
Up to four units may be mounted on the optional RA-1 rack shelf, using
four supplied Velcro feet. Desk top and wall mounting is also possible.
