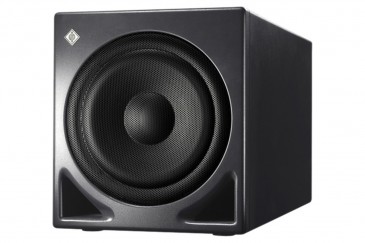

Active Studio Subwoofer
Harga | Rp 1,00 |
Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Active Studio Subwoofer
Based on the excellent acoustical
performance of the KH 810, the KH 805 is the optimal choice to be used
in stereo applications, for example in combination with the KH 120 or
KH 310.
The
KH 805 has a unique 2.1/0.1 Bass manager which enables it to be used in
many different applications. There are four routing modes to ensure
maximum flexibility. Fourth order crossovers and adaptable acoustical
controls allow for seamless system integration, and the bass management
function can be remotely controlled.
The KH 805 subwoofer is
designed to complement our extensive range of monitors, and can be used
in music, broadcast, and post production studios for tracking, mixing,
and mastering.
Uses:
• Bass extension for loudspeakers down to 18 Hz
• Increasing the maximum SPL of loudspeakers by up to 8 dB
• Decreasing harmonic and intermodulation distortion of loudspeakers
• Reproducing the LFE channel
• Reproducing the “Sub” signal of a bass managed multichannel source
• Making a Plane Wave Bass Array™ system
• Working as an extension for KH 810, KH 870 and KH 805 subwoofer systems
Features:
-I/O 2.0 or 0.1 / 2 + daisy chain
-Impedance Electrically Balanced: XLR, 13 kOhms
-Input Sensitivity 94, 100, 108, 114 dB SPL at 3.3' (1 m) for a 0 dBu input level
-Max Input +24 dBu
-Audio Signal Routing Modes: Right, LFE 120 Hz, wide, daisy chain
-CMRR > 56 dB @ 15 kHz
-Crosstalk @ 1 kHz < -95 dB
-Output Level Matching ±0.1 dB
-Dynamic Range, THD-N 119 dB (A-weighted), < 0.001% @ -100 dB
-Gain Control +2 dB to -12 dB
-Display & Indicators Power On: green LED
-Limit/Clip: "flashing" red LED
-Bass Management, Active: green LED
-Input Voltage 220 to 240 VAC / 100 to 120 VAC (switchable)
-Power Consumption (Idle) Idle: 14 W
-Full Output: 280 W
