Active Studio Monitor

Active Studio Monitor
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Active Studio Monitor

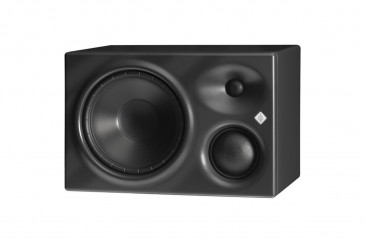

The KH 310 D three-way active tri-amplified monitor features a Mathematically Modeled Dispersion™ Waveguide (MMD™), flexible acoustical controls, various input options (analog and digital) and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations.

The KH 310 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.The KH 310 D is designed for use as a near-field monitor, as a front loudspeaker in mid-sized multi-channel systems, or as a rear loudspeaker in a larger multi-channel system. It can be used in project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.

The right sided Neumann KH 310 D - Active Studio Monitor with Digital Input and Delay combines a 1" titanium fabric dome tweeter, a 3" fabric dome midrange with a neodymium magnet, and an 8.25" long throw composite sandwich woofer with an extremely linear force factor and a ribbed surround, all powered by class AB analog amplification.

The drivers were designed using modeling techniques to minimize non-linear (inter-modulation) distortion, and each driver has an independent thermo limiter to protect the voice coils. It can be used as a near-field monitor, as a front loudspeaker in mid-sized multi-channel, or as a rear loudspeaker in a larger multi-channel system for project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.

The speaker features both analog and daisy-chainable digital BNC I/O for flexible digital inter-connectivity (24 bit, 192 kHz, AES3, and S/P-DIF). It also features digital Lipsync delay (from 0 to 10/12 frames) for aligning audio and video signals as well as digital time-of-flight delay (from 0 to 400 ms) to compensate for different listening distances.

The front panel is made from one piece without discontinuities to reduce diffraction with protective metal grills and the cabinet is made of magnetically shielded aluminum to reduce resonances, improve heat dissipation, and extend the operating lifetime of the unit.

The system delivers a free field frequency response of 34 to 21,000 Hz with 4-position bass, low-mid, and treble acoustical controls for tailoring the response to different rooms and an input gain control from 0 to -15 dB. The front panel Neumann logo functions as an LED indicator for power and clip/limiting but can also be dimmed for light applications and for use when placed behind screens. A variety of wall, ceiling, truss, subwoofer, stand, and surface mounting options are available as well as transportation options through a range of accessories (sold separately).

Features:

-Amplifier Woofer: 150 W (210 W peak)
-Midrange: 70 W (90 W peak)
-Tweeter: 70 W (90 W peak)
-Controller Design Analog, active
-Crossover Frequencies 650 Hz
-2,000 Hz
-Crossover Slope 24 dB/octave, 4th order
-Equalization Bass: 0, -2.5, -5. -7.5 dB
-Mid: 0, -1.5, -3, -4.5 dB
-High: +1, 0, -1, -2 dB
-Protection Circuits Independent thermo limiters for woofer, midrange dome and tweeter, woofer soft clip and excursion limiters
-Infrasonic filter protection 15 Hz; 6 dB/octave
-Input XLR, analog electronically balanced
-Impedance > 13 k Ohms
-Input Gain Control 0 to -15 dB
-Output Level Control 94, 100, 108, 114 dB SPL
-CMRR > 56 dB at 100 to 15,000 Hz
-Maximum Input Level 24 dBu (+18 dBu for analog delayed)
-Indicators Power On: Neumann logo "white"
-Limit/Clip: Neumann logo "red"
-Power Supply 100 to 240 V; 50/60 Hz
-Power Consumption Idle: 30 W
-Full Output AC: 300 W
