PCI Express Sound Card
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai PCI Express Sound Card

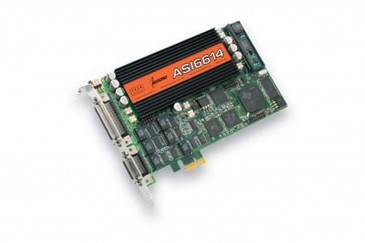

The ASI6614 and ASI6618 are professional
PCI-Express sound cards designed for use in radio broadcast
automation.Providing up to 16 play streams that are mixed to 4 (ASI6614)
or 8 (ASI6618) stereo outputs and up to 2 record streams fed from one
stereo input, the ASI6614 and ASI6618 feature AudioScience’s unique
“anything to anywhere” mixing and routing.
The ASI6614 and ASI618
provide both balanced analog and AES/EBU inputs and outputs. The
maximum analog input and output level is +24dBu.
A choice of
uncompressed PCM, MPEG layer 2 and MP3 is available for both recording
and playback. All compression is handled by an on-board floating point
DSP, allowing the host computer to focus on other tasks.
ASI6614
and ASI6618 functionality includes MRX™ multi-rate mixing technology
that allows streams of different sample-rates and formats to be mixed
digitally. TSX™ time scaling allows compression/expansion of any or all
playback streams in real time with no change in pitch.
For emerging surround sound applications, SSX2™ mode allows multichannel streams of up to 8 channels to be played and mixed.
Features:
-TSX™ time scaling by up to +/-20%
-SSX2™ mode for multichannel playback and mixing
-Balanced stereo analog I/O with levels to +24dBu
-24bit ADC and DAC with 110dB SNR and 0.0015% THD+N
-AES/EBU I/O with sample rate converters on all inputs
-Dedicated AES/EBU and Word clock Sync input
-SoundGuard™ transient voltage suppression on all I/O
-Short length PCI card format (6.6 inches/168mm)
-Up to 4 cards in one system
-Windows and Linux software drivers available
