PCI Sound Card
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai PCI Sound Card

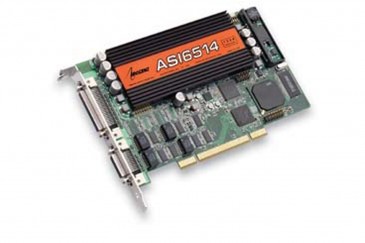

The ASI6514 and ASI6518 are professional
PCI sound cards designed for use in radio broadcast automation.Providing
up to 16 play streams that are mixed to 4 (ASI6514) or 8 (ASI6518)
balanced stereo outputs and up to 2 record streams fed from one balanced
stereo input, the ASI6514 and ASI6518 feature AudioScience’s unique
“anything to anywhere” mixing and routing.
The ASI6514 and
ASI6518 provides both balanced analog and AES/EBU inputs and outputs.
The maximum analog input and output level is +24dBu.
A choice of
uncompressed PCM, MPEG layer 2 and MP3 is available for both recording
and playback. All compression is handled by an on-board floating point
DSP, allowing the host computer to focus on other tasks.
ASI6514
and ASI6518 functionality includes MRX™ multi-rate mixing technology
which allows streams of different sample-rates and formats to be mixed
digitally. TSX™ time scaling allows compression/expansion of any or all
playback streams in real time with no change in pitch. For emerging
surround sound applications, SSX2™ mode allows multichannel streams of
up to 8 channels to be played and mixed.
Features:
-TSX™ time scaling by up to +/-20%
-SSX2™ mode for multichannel playback and mixing
-Balanced stereo analog I/O with levels to +24dBu
-24bit ADC and DAC with 110dB SNR and 0.0015% THD+N
-AES/EBU I/O with sample rate converters on all inputs
-Dedicated AES/EBU and Word clock Sync input
-SoundGuard™ transient voltage suppression on all I/O
-Short length PCI card format (6.6 inches/168mm)
-Up to 4 cards in one system
-Windows and Linux software drivers available
