PCI Express Linear Sound Card
Harga | Rp 1,00 |
Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai PCI Express Linear Sound Card

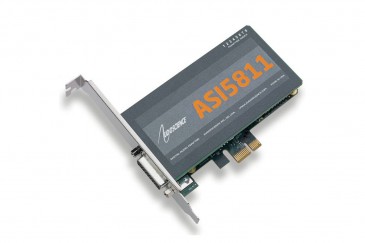

The ASI5810/ASI5811 are professional PCI Express audio adapters designed for use in radio broadcast production. The adapters offer two stereo record streams from either a balanced analog input or AES/EBU digital input and four stereo play streams mixed to both a balanced analog output and an AES/EBU digital output.The ASI5811 also includes is a microphone input, with low noise pre-amp and a 48V phantom supply. Both versions also include GPIO in the form of four opto-isolated inputs and two relay isolated outputs.
Features:
-AES/EBU or S/PDIF digital input and output (software selectable)
-Low noise microphone input with 48V phantom supply and DSP based compressor/limiter and 3 band equalizer (ASI5811)
-24bit analog-to-digital and digital-to-analog converters - 100dB SNR and 0.0025% THD+N
-11 to 192kHz sample rates
-MRX™ multi rate mixing technology supports digital mixing of multiple sample rates
-SoundGuard™ transient voltage suppression protects against lightning and other high voltage surges on all I/O
-Up to 8 cards in one system
-Half-height design and included mounting bracket allow for installation in small form factor systems
-Windows and Linux software drivers available
