Low Profile PCI Express Sound Card

Low Profile PCI Express Sound Card
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Low Profile PCI Express Sound Card

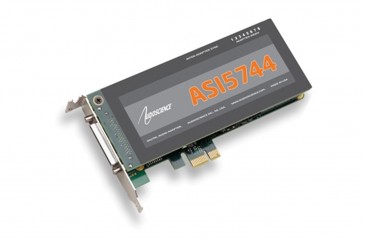

The ASI5744 is a professional Low Profile PCI-Express sound card designed for use in the installed sound, entertainment and broadcast markets.Providing 12 play streams that are mixed to 4 balanced stereo outputs and 8 record streams fed from four balanced stereo inputs, the ASI5744 7 features AudioScience’s unique “anything to anywhere” mixing and routing.

The ASI5744 provides both balanced analog and AES/EBU inputs and outputs. The maximum analog input and output level is +24dBu.

Uncompressed PCM, in a choice of precision is available for both recording and playback.

For emerging surround sound applications, SSX2 mode allows multichannel streams of up to 8 channels to be played, recorded and mixed.

Features:

-Balanced stereo analog I/O with levels to +24dBu
-24bit ADC and DAC with 110dB DNR and 0.0015% THD+N
-AES/EBU I/O with sample rate converters on all inputs
-Dedicated AES/EBU and Word clock Sync input
-Low profile short length PCI card format (6.6 inches/168mm)
-Up to 8 cards in one system
-Windows and Linux software drivers available
