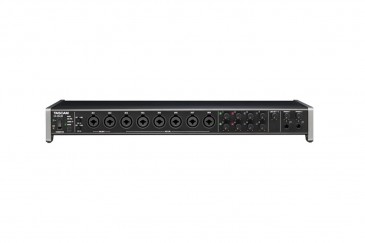

USB 3.0 Audio Interface

USB 3.0 Audio Interface
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai USB 3.0 Audio Interface

TASCAM’s Celesonic US-20x20 packs 20 channels of analog and digital I/O into a single rackspace with great sounding preamps and USB 3.0/2.0 connectivity. Eight Ultra-HDDA microphone preamps provide 56dB of gain and high headroom to make microphones sound their best. Up to ten channels of digital I/O are included on ADAT and S/PDIF connectors, with word clock also provided for use with external clocks like TASCAM’s CG-1000. MIDI I/O allows use with controllers and synthesizers, and sample rates up to 192kHz/24-bit are supported.

The TASCAM Celesonic US-20x20 is the first USB 3.0 interface to use class-compliant drivers for future-proof use with computers and tablets. A built-in DSP mixer includes parametric EQ and compression on every channel and a stereo reverb send for great-sounding monitor mixes. The DSP mixer can also be used as a live mixer or submixer with computer control. The US-20x20 has three operation modes – audio interface, digital mixer, and 8-channel digital mic preamp –for maximum flexibility.

TASCAM's Ultra-HDDA mic preamps provide up to 57dB of gain with the highest headroom in their class. Meaning your tracks won't be distorted before they even hit your computer, resulting in sweeter mids and deep soundstaging.

Popularized in TASCAM's HS-P82 professional broadcast and film recorders, Ultra HDDA preamps have the performance to handle condenser, dynamic, and ribbon microphones. These versatile preamps also feature line-level inputs for keyboards and other equipment.

Features:

-Computer Connectivity USB 3.0
-Form Factor Rackmount
-Simultaneous I/O 20 x 20
-Number of Preamps 8
-Phantom Power Yes
-A/D Resolution 24-bit/192kHz
-Built In DSP/FX Yes, EQ and Compression
-Analog Inputs 8 x XLR-1/4" combo (2 Mic/Instrument, 6 Mic/Line), 2 x 1/4" TRS
-Analog Outputs 10 x 1/4" TRS, 2 x 1/4" (headphones)
-Digital Inputs 1 x Coax (S/PDIF), 1 x Optical (S/MUX)
-Digital Outputs 1 x Coax (S/PDIF), 1 x Optical (S/MUX)
-MIDI I/O In/Out
-Clock I/O In, Thru/Out
-Rack Spaces 1U
