USB Audio/MIDI Interface

Lebih Lengkap Mengenai USB Audio/MIDI Interface

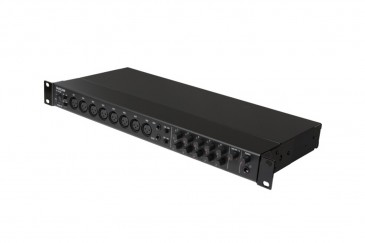

Allowing you to record up to 16 channels simultaneously in up to 24-bit/96 kHz resolution, the US-16x08 USB Audio/MIDI Interface from Tascam features 8 XLR microphone inputs with their Ultra-HDDA preamps and 8 TRS line level inputs, 2 of which can be switched to instrument level for DI recording. A DSP mixer allows you to route any signal to any output and gives you a 4-band EQ and compression for each channel, allowing you to tweak a monitor or headphone mix.

Its angled design allows you to use the US-16x08 right on your desktop, while the included rack ears provide the ability to rack mount the system. Not limited to audio, its 5-pin DIN MIDI I/O lets the unit function as a MIDI interface as well. It is compatible with Mac, Windows, and iOS (requires Apple's Camera Connection kit, not included for iOS use).

Tascam's Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, just like classic professional gear. They achieve an EIN rating of -125 dBu, meaning their noise level is practically below the range of hearing. But instead of judging the design merely by test measurements, key components were selected following extensive listening tests

Tascam uses proven components throughout the US-16x08. One example is the NE5532 op-amp, used throughout classic recording consoles and signal processors due to their musical sound.

Features:

-Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
-Eight Ultra-HDDA mic pres with XLR connectors, eight TRS inputs
-Standalone mode for use as an independent mic preamp
-Up to 96kHz/24-bit recording
-Support for Windows and Macintosh
-USB 2.0 computer connection
-Connect with iPads and other iOS devices via Class Compliant drivers
-+48V phantom power available for all microphone inputs-
-High-impedance inputs available
-56 dB of preamp gain, ideal for dynamic or ribbon microphones
-Tough metal casing for durability
-Angled design provides excellent usability on a desktop
-Eight TRS outputs
-Standard TRS headphones output jack with 70mW/ch output power
-Separate controls for line and headphones output volumes
-MIDI input and output
-Low-latency monitoring via on-board DSP mixer
-DSP mixer with 4-band EQ and compression on each input channel
-Digital Patch bay allows outputs to be assigned freely
