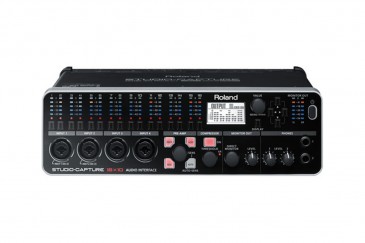

The Studio Capture USB Audio Interface from Roland is a 16-channel input and 10-channel output USB 2.0 audio interface designed for tabletop use in home studios, permanent installation in professional studios, or for travelling production needs. It is capable of resolutions up to 24-bit/192kHz and features 12 of Roland's combo XLR/TRS VS microphone preamps, four of which are located on the unit's front panel, as well as four 1/4" TRS line inputs. Additionally, the Studio Capture has eight 1/4" TRS line outputs and two XLR monitor outputs. For even more routing flexibility, the Studio Capture includes coaxial digital and 5-pin din MIDI inputs and outputs.

Each input channel on the Studio Capture features an independent compressor, low-cut filter, phase invert, and 48-volt phantom power. Roland's AUTO-SENS feature allows the unit to automatically set levels for your inputs without the need for tweaking and re-adjusting as you track. The unit can be used on a tabletop or rack-mounted with the included rack-mount ears.

Features:

-USB 2.0 Interface
-Up to 24-Bit/192kHz Resolution
-AUTO-SENS Sets Input Levels
-Compressor & Low Cut Filter Per Channel
-Phase Invert & Phantom Power Per Channel
-12x Combo XLR/TRS VS Mic Preamps
-16 Total Inputs & 10 Total Outputs
-5-Pin Din MIDI I/O
-Coaxial Digital I/O
-2-Unit Rack-Mountable
