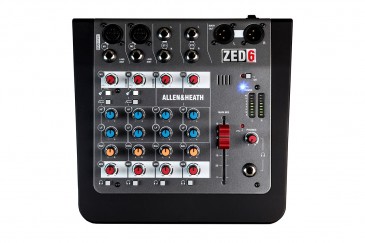

Compact Analog Mixer

Compact Analog Mixer
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Compact Analog Mixer

Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZED-6 is a six-input analog mixer. Solo musicians, lectures, and small bands alike can find this unit suitable for modest venues, hotels, churches, and schools.

The ZED-6 is crafted with preamps modeled on the Allen & Heath GS2-R24, and, as such, aims to provide low noise, warmth, and a vast expanse of headroom. On-board two-band MusiQ EQs also come standard with the unit, as well as 48V phantom power for the two mic inputs. Guitar players using the ZED-6 need not lug an extra DI box around, as the unit features two high-impedance guitar inputs. Channels three and four host dual 1/4" stereo line-level inputs.

You can monitor the outputs of the mixer either through headphones or through two XLR outputs, utilizing an eight-LED meter all the while. If you'd like to hear a sound source before placing it within the audible mix, simply press the PFL button located at the bottom of each channel strip.

ZED-6 has been created for musicians, singer / songwriters and venues seeking Allen & Heath’s renowned build and audio quality in a compact, portable format. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6 is a versatile companion for every step of the creative journey. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. Guitarists will be pleased to know that ZED-6 comes with a pair of Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.

ZED-6 features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.

Features:

-2x Mic/Line inputs with separate XLR and TRS jack sockets
-2x Stereo inputs with TRS jack sockets
-2x Guitar DI high-impedance inputs, eliminating the need for DI boxes
-High-pass filter for cleaning up unwanted low-frequency noise
-2-band EQ for tonal shaping
-60mm smooth travel fader on main mix
-XLR main outputs
-8x LED signal metering
-48V Phantom Power for condenser mics
-Internal power supply
