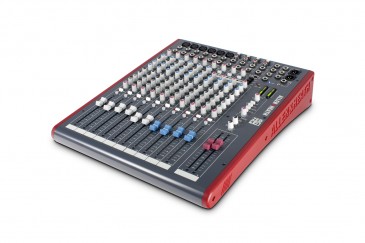

Mixer with USB

Lebih Lengkap Mengenai Mixer with USB

This is a mixer for anyone, from entry-level to professionals, who appreciates fantastic sound, rugged build quality and imaginative feature sets. It’ll be equally happy running your gig on stage, recording live or mixing down in your studio at home.

We’ve teamed up with major software supplier, Cakewalk, to bundle its SONAR X1 LE music creation and audio production software with ZED, giving you a fantastic, high spec digital audio workstation.

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations

Based on the proven pre-amps from the hugely successful PA series, ZED-14 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

Features:

-Type Analog
-Channels 14
-Inputs - Mic Preamps 6 x XLR (CH 1-6)
-Inputs - Line 6 x 1/4" (CH 1-6), 8 x 1/4" (CH 7-14 Stereo)
-Outputs - Main 2 x XLR (Main), 1 x 1/4" (Mono Out)
-Outputs - Other 2 x RCA (Alt), 2 x RCA (Rec)
-Headphones 1 x 1/4", 1 x 1/8"
-Send/Return I/O 4 x 1/4", 2 x RCA (ST RTN), 2 x RCA (2TRK RTN)
-Phantom Power 6
-EQ Bands 3-band, Sweepable Mid (CH 1-6), 2-band (CH 7-14 Stereo)
-Aux Sends 2 x Pre, 2 x Post
-Busses/Groups Alt
-Faders 12 x 100mm
-Computer Connectivity 1 x USB
-Rackmountable Yes
