Multi-Purpose Miniature Mixer

Lebih Lengkap Mengenai Multi-Purpose Miniature Mixer

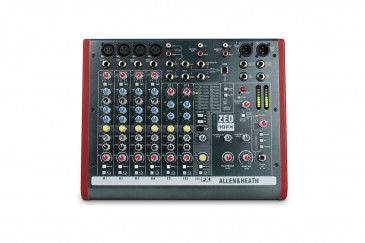

The Allen & Heath ZED-10FX Multi-Purpose Miniature Mixer is a compact yet versatile audio mixer for home recording, small sound reinforcement, video editing and small broadcast / podcast applications. The mixer features 4 XLR microphone inputs, 2 stereo line inputs and 4 Class A FET line inputs capable of accepting instrument and line level audio signals. Class A FET (Field Effect Transistor) inputs deliver the warmth associated with valve tube preamplifiers and a 26dB gain boost switch provides gain needed for instruments with very low output pickups.

A powerful 24-Bit effects engine delivers top quality effects ranging from classic reverbs, cascaded delay, shimmering flanger and chorus effects. In addition to all of this, a USB port enables direct connection to a PC or Mac for direct recording and stereo playback with your DAW software of choice.

Features:

-USB port for Mac and PC computers
-24-Bit effects processor
-4 XLR microphone and 4 instrument / line level inputs
-2 stereo line level inputs
-3-band swept-mid EQ on mono inputs and a 2-band EQ on the stereo channels
-Comprehensive monitoring with headphones and separate monitor speaker outputs
-48V microphone phantom power
-Balanced XLR main stereo outputs with inserts
-2-track record outputs and a stereo playback input for 2-track replay or interval music from a CD player
-Two aux sends (one pre and one post fade) for monitors and FX, and a separately switched stereo bus, which can be routed to from any channel
-DI level switching for sub mixing.
