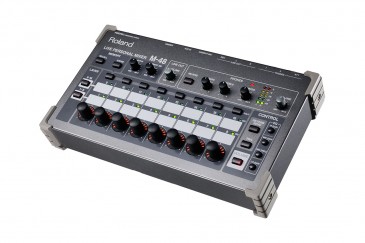

When developing the M-48 live personal mixer, RSS set out to make "personal" monitoring truly personal. The M-48 does just that. It gives each performer onstage the capability to take charge of 16 stereo groups, controlling volume, panning, a 3-band EQ, and reverb for each group - very flexible. Assisted by the S-4000D distribution system, all channels and power come to the M-48 via discreet Cat 5e. But, that's just the start of the M-48's amazing feature set. Keep reading to get the whole story on the RSS M-48 live personal mixer.

The RSS M-48 gives onstage performers an unprecedented level of personal mix control. Each performer can control levels of 16 stereo groups, assigned and spread out across the M-48's knobs in any order. The M-48's knobs support multiple functions - by engaging different switches, you can control volume, panning, a 3-band EQ, and reverb settings. There are even LED ring indicators, so you'll receive visual feedback as you dial in levels on dimly lit stages. Worth noting, a "dimmer" switch" on the rear panel lets you adjust the level of the M-48's entire LED spread, in case you need to keep it discreet in a particular stage environment. Add to all that a limiter function, so you'll have built-in protection against sudden volume spikes.

RSS's M-48 is impressive from its personal controllability standpoint, but RSS certainly didn't stop there. Each M-48 is packed with welcome problem-solving extras. For starters, there's an ambient microphone on each M-48. Instead of pulling out earbuds to hear someone who walks up to talk to you, you can just bring up the ambient microphone level and leave in your earbuds. Or, keep the ambient microphone on all the time, to get a sense of what's happening onstage. Beyond that, there's an aux input, so you can connect up an MP3 player, a metronome - any other device you want mixed into the primary sound. Plus, each M-48 features an 1/8" recording output, so you can record your personal mix to a portable recorder - perfect for recording rehearsals and practicing along at home.

The RSS M-48's convenient connectivity includes the aux input and recording output mentioned before - both very handy. The M-48 also offers two 1/4" TRS outputs, so you can feed wedge monitors to supplement each M-48 mix. Possibly even more handy, the M-48 offers both 1/4" and 1/8" headphone inputs with an attenuation knob. Working in tandem with the volume knob, you can adjust the M-48 to accommodate any set of headphones or earbuds.

If you seek the most flexibility from your M-48 system, you'll want to pair it with the RSS M-400 V-Mixer. With it, you can setup, maintain, and control 40 channels of monitor output to each M-48 connected to the system. In fact, it will auto-recognize each M-48 and let you name each one. It's also packed with memory recall, making it easy to set each M-48 up exactly the way you had it the last time. And if, for example, you have performers onstage who may not want to mess with controlling their own M-48, the M-400 lets whoever's running sound control volume, pan, and EQ of all of the channels remotely.
