VoIP/PBX Digital Hybrid

VoIP/PBX Digital Hybrid
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai VoIP/PBX Digital Hybrid

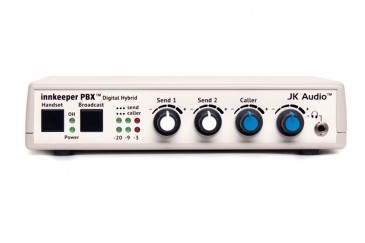

The JK Audio Innkeeper PBX is a professional telephone / audio interface that converts any multi-line PBX, ISDN or analog telephone into a broadcast, talk-show style console. The Innkeeper PBX connects between the handset and telephone base, incoming calls can be screened using the telephone handset.

A front panel button marked "Broadcast" disables the handset and enables signal flow from the XLR Send input. This provides talk show style control for radio and television broadcast. 16-bit digital processing eliminates the signal "bleed" that occurs over phone lines, isolating the incoming and outgoing audio signal paths. The front panel features individual level control of Send 1, Send 2 and Caller audio signal. The rear of the unit features mic/line switchable XLR input, XLR caller output, 1/8" (3.5mm) mini mix output, 1/8" (3.5mm) mini Send 2 input.

Features:

Send 1
-Balanced Female XLR
-Impedance 1k ohms
-Level 15 mV RMS (-34 dBu nom)
-Mic/Line Pad Switch +6 dBu max
Send 2
-1/8" (3.5mm) Mono
-Impedance 20k ohms
-Level 250 mV RMS (-10 dBu nom)
Caller Out
-Balanced Male XLR
-Impedance 200 ohms
-Level 500 mV RMS (-4 dBu nom, +14 dBu max)
Caller Only
-Stereo Out
-1/8" (3.5mm)
-Impedance 50 ohms
-Level 250 mV RMS (-10 dBu nom, +6 dBu max)
-Left = Send, Right = Caller
Headphone
-1/8" (3.5mm)
-Impedance 8 ohms
-Level 250 mW
-Mixed Send and Caller
