Broadcast Field Mixer

Broadcast Field Mixer
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Broadcast Field Mixer

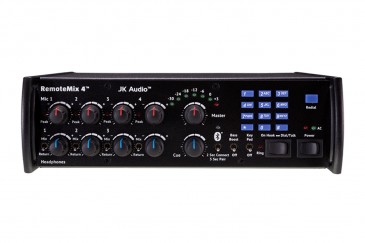

The RemoteMix 4 from JK Audio is a 4-channel field mixer, headphone amplifier, and communications interface, packed into a rugged enclosure that's smaller than a lunchbox. Designed to work together in the field with minimal setup, the components of the RemoteMix 4 are ideal for radio, television, or filmmaking.

The unit features a phone line hybrid and keypad, as well as a PBX handset interface, and a cell phone interface, providing terrific phone options for radio call-ins or live remotes. Four IFB feeds allow you to send and receive interview audio, as well as pull IFB from a business or cell phone.

The RemoteMix 4 first tries to connect to cell phones via Bluetooth wireless technology. If a connection can't be made, a 2.5mm jack allows a hard-wired connection. Other connectors include 4 XLR inputs with phantom power, an XLR line output, 4 1/4" headphone jacks, a 1/4" line input, and 3.5mm send and receive jacks.

The device also includes intelligent power management features. It offers two 9V battery bays, as well as an AC power supply. Since phantom power is not always needed, the phantom generator only operates when switched on via the rear panel. The AC power supply will only override the batteries if it is supplying power, so if the power goes out, the unit will automatically switch to battery power. One or 2 batteries can be used, and separate compartments are provided for hot-swapping batteries.

Features:

Microphones
-Female XLR
-Impedance 2k ohms
-Level -25 dBu nom
-Mic/Line Pad Switch +6 dBu max
Line Input
-1/8" (3.5mm) Stereo
-Impedance 20k ohms
-Level -10 dBu nom
Cue Input
-1/4" Mono
-Impedance 20k ohms
-Level -10 dBu nom
Mix Out
-Balanced Male XLR
-Level +16 dBu max
-Frequency Response 20 Hz - 20 kHz +/- 1dB
Line Output
-1/8" (3.5mm) Stereo
-Impedance 100 ohms
-Level -10 dBu nom
Headphones
-1/4" Stereo
-Impedance 8 ohms
-Level 1/3 watt per channel
