Lebih Lengkap Mengenai HD / SD Character Generator Kit

Datavideo's CG-200 and TC-200: an innovative HD CG system for mobile broadcasting, live conferences and dynamic video presentations. Using a standard laptop, it enables users to create and deliver attractive on-screen graphics and titles in real-time.


It is easy to operate, designed to be intuitive and responsive under the pressure of a live event. CG-200 and TC-200 works with standard Windows laptops with an HDMI interface and supports vision mixers with and without a DSK. Until now, real-time PC titling software has required an additional SDI adapter card to be fitted into a desktop PC.

For live programming on location, a computer-based character generator can be problematic, in terms of the physical bulk of the PC, the need for an additional screen and the power requirement. CG-200 and TC-200 makes professional CG on the run a reality.

DSK mode:
As software only, CG-200 and TC-200 can work with a vision mixer equipped with a DSK. In this mode, CG-200 and TC-200 can be set up as the key source or fill source. It can work with any vision mixer (such as the Datavideo SE-2800 and SE-3000) that has a downstream keyer (DSK).

Overlay mode:

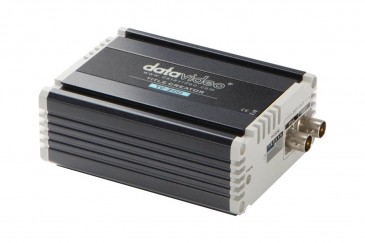

The Title Overlay mode overcomes the lack of a DSK in the vision mixer. Using the small external TC-200 hardware unit, The HDMI output from the laptop is embedded with the SDI output from a camcorder, VTR or vision mixer.

Features:

-Text Sources Frame text, clock, text file, CSV file
-File Format JPG, PNG, BMP, TGA, GIF, GIF
-Animation Formats: GIF
-Input / Output:
1x HDMI input
1x HD-SDI input
2x HD-SDI outputs
1x LAN port
-Input Formats:
1920 x 1080i / 60 Hz
1920 x 1080i / 59.94 Hz
1920 x 1080i / 50 Hz
1280 x 720p / 60 Hz
1280 x 720p / 59.94 Hz
1280 x 720p / 50 Hz
720 x 576i / 50 Hz
720 x 480i / 59.94 Hz
-Input Modes CG Overlay:
HDMI input is CG; SDI input is Live Video
-Genlock Mode:
HDMI input is CG; SDI input is Reference Signal
-Voltage Range 7-15 VDC (most of battery is 7.2V, 12V & 14.4V so will need to cover it)
-Firmware Upgrade Ethernet
-System Requirements Windows 7, 8 operating system; 3 GHz processor; 2 GB RAM
