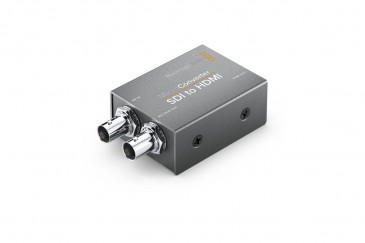

Connect your professional video equipment to any HDMI monitor or consumer television with the Blackmagic Design SDI to HDMI Micro Converter. This miniscule Micro Converter accepts an SD, HD, or 3G-SDI signal and converts it to an HDMI signal while retaining the original image quality and resolution. An SDI loop output sends out a re-clocked SDI signal for connecting to other down-stream equipment. The converter's small size allows it to be placed nearly anywhere, and it can be powered via any standard USB power source, including separately available USB battery packs.

Features:

I/O :
1 x SD/HD/3G-SDI BNC input
1 x SD/HD/3G-SDI BNC loop output
1 x HDMI type A output
1 x micro-USB

Format Support:
1080p24/25/29.97/30/50/59.94
1080PsF25/29.97/30
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL

SDI Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

Color Precision:
4:2:2
