On-air Status Indicator

On-air Status Indicator
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai On-air Status Indicator

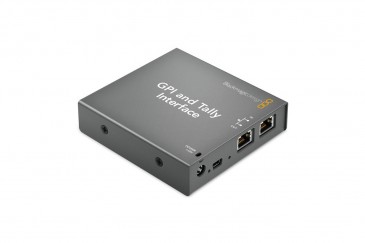

The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

-Displays tallies for indicating the on-air status of video signals
-8 contact closure inputs & 8 contact closure outputs
-Compatible with ATEM switchers and Videohub routers
-Connect to multiple interfaces offering enhance flexibility in operation

Features:

Connections:

-Contact Closure
25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
-Inputs
Optical  isolators triggered by connection to ground (maximum 5 V @ 14 mA)
-Outputs
Mechanical relay contact closure to ground (maximum 30 V @ 1 A)
-Ethernet
10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
-Computer Interface
1 x USB 2.0 high speed interface for configuration and firmware updates
