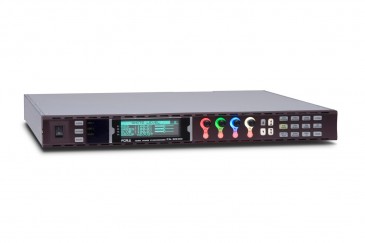

Multi-Purpose Signal Processor 3G/HD/SD
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Multi-Purpose Signal Processor 3G/HD/SD
The FA-9500 is a multipurpose signal
processor loaded with the functions you need for video production. The
unit supports 3G-SDI, HD/SD-SDI, and analog composite I/O. In addition
to its functionality as a frame synchronizer, it also provides
up/down/cross/aspect converter, color corrector, and automatic video
optimizer (AVO) as standard features.
It can convert many types
of video and audio signals. Numerous additional functions include, as
options, analog component I/O, logo generator, Dolby E encoder/decoder.
By combining these varied options, a single unit can provide optimal
functionality for all video production scenes, including that for
transmission, line production, news reporting, production, editing and
distribution.
As long as you have an FA-9500, you won't need any other piece of peripheral video equipment.
Features:
-Video Standards
1080/60p, 1080/59.94p, 1080/50p,
1080/59.94i, 1080/50i, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p,
525/60 (NTSC), 625/50 (PAL)
-Quantization 12-bit (Analog Composite), 10-bit (3G/HD/SD-SDI)
-Frequency
Response 100 kHz - 4.2 MHz: -0.5 dB - +0.5 dB; 4.2 MHz - 5.0 MHz: -1.0
dB - +1.0 dB; roll-off above 5.0 MHz (NTSC, composite)
100 kHz - 4.2 MHz: -0.5 dB - +0.5 dB; 4.2 MHz - 5.5 MHz: -1.0 dB - +1.0 dB; roll-off above 5.5 MHz (PAL, composite)
-Comb Filter 2D or 3D (selectable, composite)
-Internal Processing Selectable 1 source from 3 inputs (standard) or 5 inputs (maximum input)(auto-detect or manual setting)
-Video Delay Maximum 8 frames (adjustable by frame/line/clock)
-Video Processing Functions
Up/down/cross/aspect ratio converter
Proc amp
Color corrector
Automatic Video Optimizer (AVO)
Second converter (down/cross/aspect ratio)
-Additional Video Functions - Optional Frame rate converter
Logo generator
-Video Clip
YPbPr mode
GBR mode (with color correction function)
Composite mode (with color correction function, analog composite output only)
-Color Correction Balanced mode for GBR signals
Differential mode for YPbPr signals
Sepia mode for monochrome signals
-Frame Rate Converter - Optional
1080i
to 1080i, 1080i to 720p, 1080i to 525/60, 1080i to 625/50, 720p to
720p, 720p to 525/60, 720p to 625/50, 525/60 to 625/50, 1080p/PsF to
1080i, 1080p/PsF to 720p, 1080p/PsF to 1080p/PsF, 1080p/PsF to 525/60,
1080p/PsF to 625/50
-Audio Delay 0-1000 ms (Each channel is adjustable in 1 ms steps)
-Interfaces Ethernet: 10 Base-T / 100 Base-TX / 1000 Base-T, 2 ports, RJ-45
Remote (GPI): 1 port, 9-pin D-sub (male) (7 terminals), TTL negative logic level signal or make contact
-Temperature 32-104°F (0-40ºC)
-Humidity 30-90% (no condensation)
-Power 100-240VAC ±10%, 50/60Hz
-Consumption 60W at 100VAC
