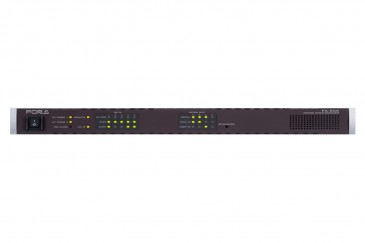

Multi-Channel Signal Processor

Multi-Channel Signal Processor
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Multi-Channel Signal Processor

Frame synchronizer equipped with an array of essential functions used in video production and that allow multi-channel routing (5-input/5-output video). Supports 3G-SDI and HD/SD-SDI input/output as standard and includes all typical FS and CC (standard) features. The unit provides up/down/cross-conversion on each input as standard and allows 1080i to 720p, or 720p to 1080i conversion.

Highly versatile audio signal processing capability with delay adjustment and remapping functions plus a sampling rate converter. Combining these varied options allows a single unit to provide optimal functionality for all video production scenes, including those used in transmission, outside broadcasting, news reporting, production, editing and distribution.

A sister model of the 10-input/10-output FA-1010, which has 10-channel processing, the FA-505, with 5 inputs, 5 outputs and 5-channel processing, also comes equipped with features not found in the FA-1010, including an up/down/cross/aspect converter function.

With 16 channels of 3G/HD (synchronous/asynchronous) and SD-SDI*1 (synchronous) embedded audio on each input supporting up to 80 channels on all 5 inputs, a versatile array of signal processing is possible, including standard SDI embedding and de-embedding, and if an optional expansion card is installed, A/D and D/A conversion.

Features:

-Video Formats:
3G (Level A/B): 1080/59.94p, 1080/50p
HD (Level A/B): 1080/59.94i,1080/50i,1080/24PsF,1080/23.98PsF, 720/59.94p, 720/50p
SD: 525/60 (NTSC), 625/50 (PAL)
-Video Delay Maximum 8 frames (in Frame Sync mode)
-Video Processing Functions: Up converter, down converter, cross converter, aspect converter, proc amp, color corrector
-Color Correction Mode: Balance, differential, and sepia
-Audio Delay 5 to 1000 ms (adjustable in 1 ms steps)
-Interface Ethernet (10Base-T/100Base-TX/1000Base-T): 1 x RJ45
-Temperature 32 to 104ºF (0 to 40ºC)
-Humidity 30 to 90% (no condensation)
-Power 100 to 240 VAC ±10%, 50/60 Hz (redundant power supply as sta
