Capture Device
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Capture Device

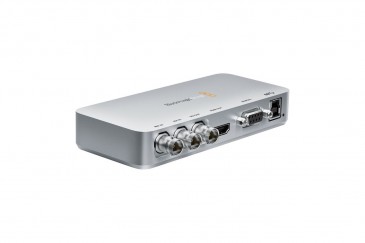

Blackmagic Design UltraStudio SDI is a
Windows-compatible HD-SDI capture device that connects to your computer
via USB 3.0. The compact, handsome, machined-aluminum device draws power
through the USB 3.0 connection. UltraStudio SDI includes all necessary
capture/playback software and drivers, so setup is a breeze.
The
device captures uncompressed 10-bit 4:2:2 YUV video from any deck,
broadcast router, or video camera with SDI output, and plays it back to
broadcast-quality SDI monitors. The USB 3.0 connection supports data
rates up to a blazing 4.8 Gb/s, which is plenty fast to effect a direct
high-speed connection to your video editing software's real-time effects
processing.
Features:
-High-Quality Connections
UltraStudio SDI includes the
highest-quality low-jitter SDI connections that instantly switch between
all SD and HD video formats. Connect to decks such as Digital Betacam,
HDCAM, HDCAM-SR, Panasonic D5, DVCPRO HD, Sony PMW-F3, and more.
UltraStudio SDI includes HDMI 1.4 out, so you can use any television as a
broadcast monitor, dramatically lowering the overall cost of editing
systems. HDMI out even lets you connect to video projectors for a
theater-style screening room environment. UltraStudio SDI includes deck
control, genlock, and fully powers via USB 3.0
-Incredible Quality Video
With
UltraStudio SDI you get both compressed and uncompressed video capture
and playback in the highest-quality 10-bit 4:2:2 YUV. Only uncompressed
video captures every bit of every pixel in the SDI video connection for
an exact mirror image between capture and playback. That's the highest
quality possible from the SDI specification
-Advanced USB 3.0
For
a future-proof design, UltraStudio SDI features built-in USB 3.0 for a
high-speed 4.8 Gb/s connection that's up to 10 times faster than USB 2.0
or FireWire. USB 3.0 is built into the latest computers and is more
than 3 times the speed of HD video. This means you get a direct
high-speed connection to your editing software's real-time effects
processing. You won't need to waste CPU time compressing video just to
play it back, so you get more HD real-time effects than products without
such a high-speed connection. Unlike older USB 2.0 and FireWire
products, you're not restricted to a single, slow-rendering, compressed
video format. Choose compressed or uncompressed video formats based on
the job you're doing
