Computer Video Hardware
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Computer Video Hardware

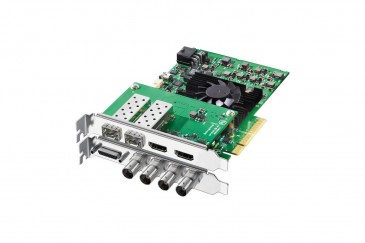

The Blackmagic Design DeckLink 4K Extreme
12G is an 8-lane PCIe Gen2 digital cinema capture and playback card
with two multi-rate 12G-SDI inputs and outputs that accept resolutions
from SD up to DCI 4K (4096x2160) at 60 fps.
The card supports
10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross
conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB.
The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K
HDMI input and output connectors on a second daughter card, along with
connections for adding two optional optical fiber modules for Dual Link
optical fiber SDI input and output.
The card also supports
AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video
I/O, reference input, and RS-422 control via an included breakout cable.
Features:
-3D Stereoscopic SDI Output at 4:4:4:4
-Up/Down/Cross Conversion
-Optional Optical Fiber I/O Modules
-Breakout Cable for Analog / RS-422
-Genlock & Deck Control
-Compatible with Mac, Windows, and Linux
