7" LCD Monitor with Sony Battery Mount

7" LCD Monitor with Sony Battery Mount
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 7" LCD Monitor with Sony Battery Mount

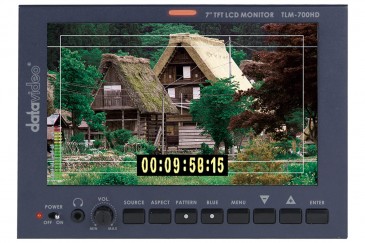

The Datavideo TLM-700HD-S1 7" LCD Monitor with Sony Battery Mount comes with a 7” wide screen TFT panel, NTSC/PAL support, and LED life of 20,000 hours, and produces high-quality images at a resolution of 800 x 480. It offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m². A wide viewing angle of 60/-40° (V) x ±60° (H) ensures that you can view images clearly from any corner of the room or when the display is mounted at a height.

Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios. The Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun. With the time code mode, you can view the time code on the screen. In addition, the unit supports VITC (vertical interval time code) type of time code. Featured dual color tally system indicates different program statuses.

Equipped with an integrated color bar, the TLM-700HD-S1 LCD monitor enables precise and accurate screen calibration. Multi-language OSD (On-screen Display) offers intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only).

The TLM-700HD-S1 LCD monitor supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video input, thereby offering all-round connectivity. With a rugged metal design, the LCD monitor is suitable for HD/SD applications such as outdoors in field and production studios.

The Sony battery mount (S-7000U) Z5 includes a rear cover, adapter plate, and boost board. It is compatible with Sony BP-U60 and BP-U30 DV batteries. In addition, the battery mount features open end DC wires in the rear to connect with the equipment.

Features:

-Interface 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio)
-1x Component Y.U.V Sony Betacam Spec
-1x CV input
-1x HDMI input
-1x D-Sub 15 Pin Plug (Tally Light Signal)
-Resolution 800 x 480
-Contrast Ratio 500:1
-Brightness 300 cd/m²
-Viewing Angle 60/-40° (V) x ±60° (H)
-Operating Temperature 32 to 102°F (0 to 40°C)
-Humidity 10 to 90% (non-condensing)
-Firmware SVN 1.6
