17.3" HD/SD TFT LCD 7U Rackmount Monitor

Lebih Lengkap Mengenai 17.3" HD/SD TFT LCD 7U Rackmount Monitor

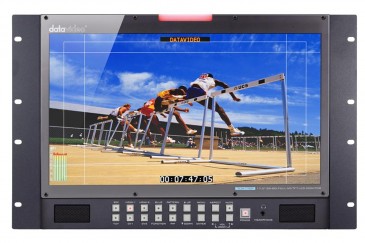

The Datavideo TLM-170PR is a 17.3", 7U rackmount video monitor that delivers superb FULL HD 1080P image quality from various inputs including 3G-SDI. The monitor is a professional grade panel designed to give excellent colour and video performance across a range of formats and standards as well as 24/7 operation.

The TLM-170PR Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect ratio, Blue only, Pattern (Colour Bars), Menu and audio controls. Input HD/SD sources via the rear panel SDI, HDMI, Component (Y, Pb, Pr) and Composite connections as well as monitoring RCA phono or embedded SDI / HDMI audio.

The Datavideo TLM-170PR monitor has an on-screen display (OSD) menu which allows control and set up of brightness, contrast, saturation, hue, sharpness, colour temperature and picture in picture. It also has RJ-45 TCP/IP connector to allow remote set up of the monitor using a PC / Mac based web browser. The menus can also be used to display onscreen overlays for frame marker, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title.

The Datavideo TLM-170PR monitor can be operated from AC or 12V DC power making it flexible for use in a Studio, Gallery, Post Production Edit Suite or even in an OB van.

Features:

-Chassis 7RU rack face-mount
-Signal System NTSC/PAL auto-detecting
-Processing 10-bit
-Screen Size 17.3"
-Resolution 1920 x 1080
-Supported Input Resolutions:
720 x 480i (NTSC)
720 x 576i (PAL)
1280 x 720p (50/59.94/60 Hz)
1080i (50/59.94/60 Hz)
1080p (23.98/24/25/30/50/59.95/60 Hz)
-Aspect Ratio 16:9, 4:3 switching
-Viewing Angle:
Top: 60°
Bottom, left, right: 80°
Brightness 400 cd
-Contrast 600
-Tally Live (red) / Cued (amber)
-Audio Built-in stereo speakers
-Inputs:
2 x HDMI
2 x 3G/HD/SD-SDI
1 x Component YUV
2 x Composite video
4 x Mono RCA audio
External Sync (Loop Thru) 1 x 3G/HD/SD-SDI
2 x Composite video
-Maintenance 1 x USB 2.0 auto firmware upgrade
-Operating Temperature 32 to 122°F (0 to 50°C)
-Storage Temperature 14 to 140°F (-10 to 60°C)
-Power Requirements 12 VDC
-Power Consumption ~30 W
