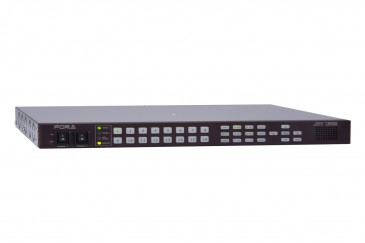

3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 3G/HD/SD/Analog/HDMI/DVI Mixed High Resolution Multi Viewer
Supports mixed signals including: 3G-SDI
(Level-A/B), HD-SDI, SD-SDI, Composite, HDMI, or DVI sources.
Asynchronous input is also supported. The multi viewer accepts an array
of formats and frame rates including NTSC, PAL, 1080/59.94i, 1080/50i,
and 30/29.97/25/24/23.98p or PsF. (No frame rate conversion)
Combine
optional input cards, MV-12SDI (3G/HD/SD-SDI, Composite x 4), MV-12PCI
(DVI/HDMI x 4), or the MV-12IF interface card (GPIO, serial control, LTC
input, genlock), as needed.
Customize layouts, using the
software in Windows to adjust image size, position, title display, and
other settings. Up to 16 preset patterns each for 4K/2K modes can be
stored. Recall saved layouts directly from the front panel control.
Features:
-Flashing borders or error icons/messages to identify screens with errors
-Tally, Title, and Timecode
-Time of day, Timer, and Information Display
-View error logs or user text in the Information Display.
-Logo/Background
-Input Lock enables genlock without using reference signals.
-Can display time based on a 30-hour clock.
-Register up to 24 schedule timers per day for 1 week.
-Cropping
-Detects frozen frames. (Y/C and Y only)
