Antenna

Antenna
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Antenna

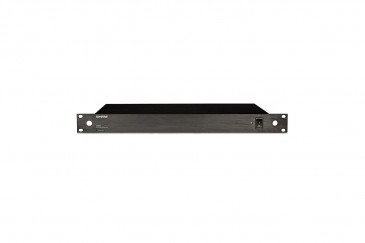

The Shure UA845WB UHF Antenna Distribution Amplifier distributes a boosted radio-frequency (RF) signal from Shure wireless microphone transmitters, to four receivers. The Shure UR4, UC4 and UHFR series are among some of the compatible wireless microphone systems.

Features:

-Expandability. The UA845-SWB UHF Antenna Distribution System is designed for large UHF, UHF-R, or ULX-D™ wireless systems. Each unit allows up to four wireless receivers to use the same two antennas, and the CASCADE ports allow connection to a fifth receiver or a second UA845-SWB.

-Compatibility. The UA845-SWB is compatible with all Shure UHF, UHF-R, and ULX-D wireless microphone receivers operating within a compatible frequency range (see UHF Carrier Frequency Ranges in the Specifications section).

-CASCADE Ports. Two 50 ?, BNC-type antenna CASCADE ports allow an additional UA845-SWB unit or a fifth wireless receiver. A large wireless system can be run off of a single pair of antennas.

-Power OUTPUT and OUT Connectors for Shure UHF and UHF-R® Wireless systems. Up to five U4 or UR4 receivers can be daisy-chained and powered from a single source via the Power OUTPUT connectors. DOES NOT APPLY TO ULX or ULX-D.
