Lebih Lengkap Mengenai Portable HD Microwave Link

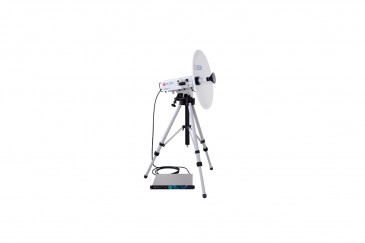

The portable microwave system XPM is the latest product developed by Elber R&D group. It’s a digital link working either in COFDM technique (standard DVB-T) or single carrier wideband (standard DVB-S2), selectable by software. It is a split type (2 boxes) system composed by a RF head, waterproof  IP65 (transmitter or receiver) and a rack mount lightweight control unit, whose name is Cleber.

Cleber can host up to six different boards plug-in, such as encoders, decoders, modulators or demodulator with standards DVB-S, DVB-S2, DVB-T. Encoders and decoders can be programmed for both MPEG-2 and H.264 compression, High and Standard Definition, 4:2:0 and 4:2:2 for high quality audio/video contribution; the end-to-end latency can be 150ms, which makes the system the best for newsgathering and sport events. The RF box is installed on a tripod, for simplex transmission, and a base plate for two boxes with orthomode transducer is available for double simplex and full duplex configurations

Features:

Simplex, Double Simplex or Duplex
- Modulations:
- DVB-T COFDM 2k/8k (QPSK,16-64QAM)
- DVB-S/S2 (QPSK, 8PSK,16-32 APSK)
- Frequency Band 1.2 ÷ 15 GHz
- Up to 500 MHz frequency agile
  (step size to be established with the user)
- Very Low phase noise
- Power Output @ 1 dB Compression Point:
• XPM/T/01 +34 dBm ±1 dB
• XPM/T/02 +36 dBm ±1 dB
• XPM/T/07 +33 dBm ±1 dB
• XPM/T/10 +30 dBm ±1 dB
• XPM/T/14 +30 dBm ±1 dB
