XPIC ASI-IP-SDH link
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai XPIC ASI-IP-SDH link

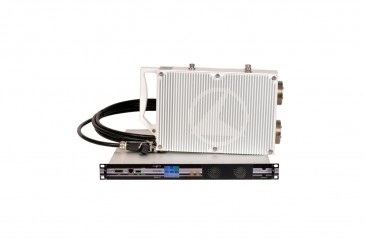

The REBLE610-ODU is the split version of
REBLE610 Elber full indoor microwave link, from which it differs for the
separation between the RF part (hosted in a waterproof aluminum case)
from the modem, the I/O section and control. The indoor unit (or control
unit) REBLE610-IDU is equipped with a hot-swappable redundant power
supply, available both with AC and DC inputs.
The modular
approach has brought to the development of the data interface module
(hosting modulator, demodulator and data interface) and the ODU
communication module (with head supply and optical interface). From an
RF point of view, the new transmission circuitry is able to guarantee
around 1 Watt with every modulation scheme, introducing, in addition,
wideband precorrection (up to 1GHz depending on frequency band).
Features:
-Frequency:
2 2000-2300
3 3400-4200
4 4400-5000
5 5000-5500
6L 5925-6425
6U 6425-7125
7 7125-7825
8 7825-8500
10 10000-10700
11 10700-11700
13 12700-13200
14 14000-15500
Others on request.
-High-speed modem integrated
-Interfaces:
Version A:
10 x DVB-ASI/BTS
1 x E1 (2.048Mbit/s)
1 x GbE
Version B:
5 x DVB-ASI/BTS/SMPTE310
5 x E1 (2.048Mbit/s)
1 x 10/100/1000BASE-T
Version C:
2 x STM-1
2 x OC-3
4 x 10/100/1000BASE-T
2 x 1000BASE-X
1 x E1 (2.048Mbit/s)
1 x Voice Channel
-Bandwidth: 1.75÷56 MHz
-VBR up to 310 Mbps (620 Mbps with XPIC option)
-Integrated hitless switch for 1+1 configuration.
-Redundant hot-swappable power supply (AC and/or DC)
-WEB interface, SNMP v2 and GPIO
