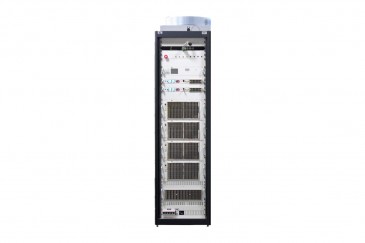

SLIM10000 VHF BAND I

Lebih Lengkap Mengenai SLIM10000 VHF BAND I

5,000 W rms ATSC and 10,000 W p.s. 42RU solution composed by one PCM BI driver and one SLIM-5 BI amplifier.
The SLIM5-04-BI-SD-PCM (Band first – Banda Primera – VHF-I), it’s a TV Transmitter, Transposer and Repeater.
The SLIM5-04-BI-SD-PCM is the air cooled power transmitter solution from SLIM family.

Key facts:

Multimode platform – same hardware: System driver, low power transmitter, heterodyne transposer, regenerative transmitter, translator.
Multistandard Transmitter (Analog and Digital software defined)
2x INPUT= SAT (S2 with CAMSlot), Ethernet, ASI= Hitless switch
Regenerative and SFN Gapfiller functionalty
Freq. agile with static or adaptive pre-correction
BUILT in GPS receiver
Easy to use: web graphic interface GUI response.
The Air Cooled transmitters line = SLIM Line offers air cooled TV transmitters, with one or more amplifier modules. The product lineup covers from low to high power levels, featuring excellent signal quality and compact size. The SLIM models are available also as repeaters of the off-air signal, with a wide choice of operation settings, or as re-transmitter, with satellite or Ethernet input. SLIM line is one of the “best Seller” of Syes, some of SLIM model are actually operating since 90’. Slim line represents the state of the art of the low-medium RF transmitter technology. SLIM always count on PCM driver (PCM Line), the unique investment exciter thanks to its capability to modulate in all Digital standard, TV and Radio as the TV analog too.

Transmitter configurations are based on single or multiple identical amplifier units (PA), SLIM type. The equipment layout depends on the desired output power level and operational requirements. The PA(s) are directly fed by the exciter. The choice of redundancy configurations can include dual drive (exciter std-by), passive reserve (1+1 or n+1) and more others. The equipment parts are suitable to be assembled in a cabinet, 19”rack std., typically containing also the RF output filter. Single-PA – single-drive models are typically supplied as loose 19”modules. For redundancy configurations and/or multi-channel transmission, important space savings are allowed by the “N-in-one” configurations, with N transmitters in a single cabinet. Cooling is by forced air, with redundant blowers for each module and hot air extraction from the cabinet top. Equipment operation is supervised by the SyES designed control unit.
