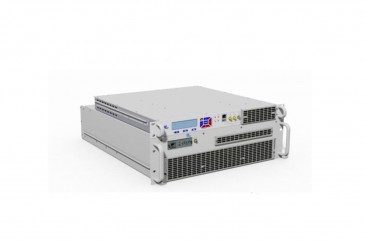

SLIM1000 UHF

Lebih Lengkap Mengenai SLIM1000 UHF

Multistandard Transmitter: All digital / All analog in the same hardware (ATSC 3.0 ready)
Multimode platform: same hardware: System driver, low power transmitter, heterodyne transposer, regenerative transmitter, translator (integrated DVB-S2 receiver), Gap filler and Single Frequency Echo Canceller
Base inputs: 2x ASI Hitless switch, 2x SAT (S2 with CAMSlot), 2x Ethernet Hitless switch
Regenerative and SFN Gap filler functionality
Freq. agile with static or adaptive pre-correction (Linear and non linear)
BUILT in GPS receiver for SFN Applications
Easy to use: web graphic interface GUI response
The SLIM Line offers air cooled TV transmitters, with one or more amplifier modules.
The product lineup covers from low to high power levels, featuring excellent signal quality in small sizes.

The SLIM Lines models are available also as repeaters, with a wide choice of operation settings, or as re-transmitters, with satellite or Ethernet input.

SLIM line is the “best Seller” of Syes with more than 8,000 Units operating worldwide and it’s a really heavy duty transmitter, some of the SLIM models are operating since the 90’.
SLIM line represents the state of the art of the low-medium RF transmitter technology.

Transmitter configurations are based on single or multiple identical amplifier units (PA), SLIM type. The equipment layout depends on the desired output power level and operational requirements (redundancy needs too). The PA(s) are directly fed by the PCM exciter. The choice of redundancy configurations can include dual drive (exciter std-by), passive reserve (1+1 or n+1) and more others.

The equipment parts are suitable to be assembled in a cabinet, 19”rack std., typically containing also the RF output filter.

Cooling is provided by forced air, with redundant blowers for each module and hot air extraction from the cabinet top.
