Smart Relay 4
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Smart Relay 4

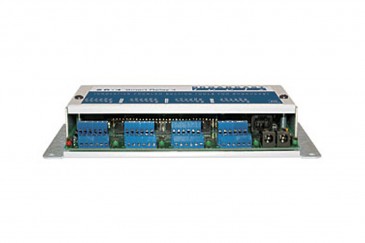

The SR–4 provides four independent interfaces equipped with two optically isolated
wet or dry inputs and a 2PDT relay. Additional features include; Independent user
programmable logic and pulse stretching (delays) from 50ms to 99 hours, 59 minutes,
59.99 seconds. The SR-4 is supplied in a single small profile aluminum chassis.
Mounting options range from surface mounting, DIN rail, two units mounted on the
RM-3, 1-RU rack shelf or up to twelve units on the RA-12, 3-RU rack panel.
Features:
- Fifteen logic functions include, sustained, toggle, set-reset (flip-flop), dual alternate
action or failing/rising edge, along with additional Boolean logic functions.
- The independent pulse stretcher or time delays may be user programmed from
50ms to 99 hours, 59 minutes, 59.99 seconds.
- Independent four position dipswitches are provided for all logic function configurations.
- Non-dedicated PC (w/HyperTerminal) is used for independent timing configurations.
- Dual power jacks allows for the daisy chaining of units from one wall supply.
