LAN Extender / Data Link

LAN Extender / Data Link
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai LAN Extender / Data Link

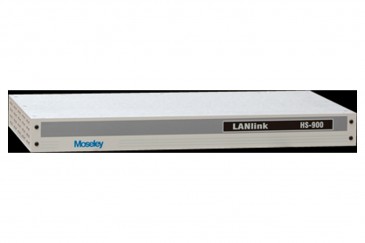

LANLINK HS-900D combines Moseley’s reputation for high quality aural Studio-to-Transmitter Links with industrial strength, mission-critical wireless communications solutions. This provides broadcasters with a fully integrated Ethernet / IP / RS-232 data transport system.

Because of LanLink’s closeness in frequency to the 950 MHz STL  band, it can be combined into an existing 950 MHz antenna system using its built-in duplexer. This eliminates the need for installation of additional antennas with their accompanying landlord issues, tower leases, and wind loading.

LanLink’s web-browser-based control interface is rich with diagnostics. It can be controlled from any computer located on the network. Advanced SNMP allows LanLink to be used with network management systems

Features:

-MODEL LanLink HS-900D: with built-in duplexer
-FREQUENCY BAND 902-928 MHz ISM band
-DATA RATE Ethernet 1 Mbps/512 Kbps, user confi gurable
-Serial ports (2) RS-232 1,200-115,200 bps
-SPREADING MODE DTS (Digital Transmission System)
-COVERAGE RANGE Up to 30 mi. (40 Km.)
-POWER 0.1 to 1 watt (20 to 30 dBm)
-IMPEDENCE 50 V
-MODULATION CPFSK (Continuous Phase FSK)
-ANTENNA N Female
