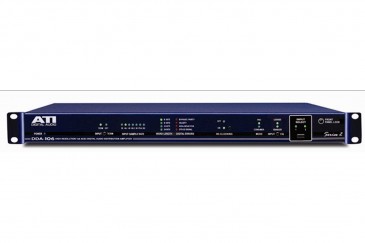

1X6, XLR Distribution Amplifier

DDA-106 Series 2 Digital Audio Distribution Amplifiers are designed to regenerate, isolate and distribute digital audio data formatted in accordance with specifications AES3-1992 and IEC 958. This is commonly called AES/EBU formatting or AES3. DDA-106 Series 2 units have two inputs, selectable from a front panel switch. The selected input feeds AES audio to six separate outputs. A front panel switch selects either reclocking or non-reclocking of the input signal. In most cases, re-clocking is preferred, as this feature improves the integrity of weak or distorted input signals. Re-clocking may be switched off to allow distribution of AES sync signals, Dolby E encoded AES signals, or other signals that should not be re-clocked. DDA-106 Series 2 units work with AES signals that contain sample rates from 27 through 192kHz and16-bit through 24-bit density, thus permitting very high resolution signals to be

distributed.

The front panel displays full status of the input signal, including Sample rate, Word Length, Digital Errors and Pro or Consumer Mode. DDA-106 Series 2 units contain a unique automatic equalization function that can adjust for extremely long input lines. Equalization works independently for each input. A Front Panel

Lock feature protects all your settings. The Model DDA-106XLR uses XLR connectors and operates from and drives a 110-ohm balanced shielded twisted pair distribution system per AES3-1992. Input Loop-through connections are provided to permit multiple units to be stacked, or to

insert the DDA-106 into your digital workflow. Switchable line termination is provided.

Standard practice dictates that the last AES input be terminated; therefore, if you are not using the loop-through feature, Input Termination should be switched ON.
